Customizable mobile robot for industrial applications
RB-VULCANO PRO

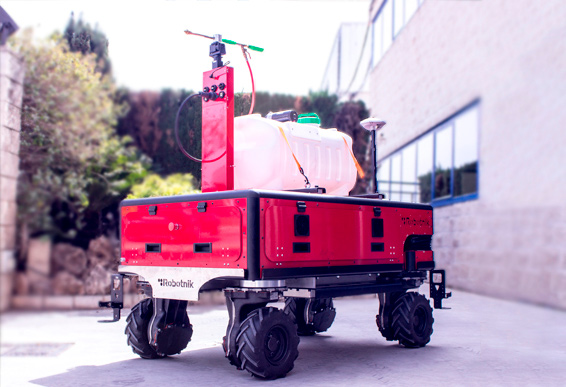

RB-VULCANO PRO MOBILE ROBOT
Customizable mobile platform for carrying out industrial tasks
UP TO 1.750 KG OF PAYLOAD
Z-AXIS EXTENDED ARM WORKSPACE OPTION
CONFIGURABLE SAFETY SENSORING
AUTOMATIC EXCHANGE OF BATTERY
Personalized Collaborative Mobile Manipulator ideal for indoor and outdoor applications
The mobile platform RB-VULCANO PRO stands out for its ability to integrate various components for performing numerous tasks in industrial, agricultural and logistics environments. Among these components are tools, structures, supports, robotic arms, forklifts, roller-conveyors, tanks and air/hydraulic units, among others.
RB-VULCANO PRO is a highly maneuverable platform thanks to its wheels with infinite rotation that allow navigation in single, dual Ackerman and Omni-drive (Serve drive). And thanks to its integrated rocker with the possibility of cushioning, it ensures maximum traction at all times.
RB-VULCANO PRO is fully autonomous and collaborative, and can share workspace with people safely by means of its integrated lasers.
The top of the RB-VULCANO PRO platform forms a cargo or workbench where you can integrate those components that are suitable for the development of the activity that you will be applying to the robot.
The robot can incorporate different magnetic navigation systems, SLAM or remotely through a PTZ camera.
Other notable elements of the robot are its fairing, completely removable for easy maintenance and access to electronics; its battery easily interchangeable -with the possibility of acquiring a charging station with automatic exchange of battery- and easy integration of additional components in its interior.
Customization of this robot presents a multitude of possibilities:
- Adaptation of standard dimensions.
- Integration of different types of lasers, GPS, infrared cameras, 3D lasers.
- Adaptation to the type of load and capacity up to 1.750 kg.
- Variation of the lifting height.
RB-VULCANO PRO APPLICATIONS
Industrial mobile manipulation
R&D
BLUEPRINTS

Technical Specifications
MECHANICAL
*These values may change depending on the components and applications. Consult possibilities
- Dimensions: ≥ 1.807 x 1.087 x 941 mm *
- Weight: ≥ 700 kg *
- Payload: ≥ 250 kg *
- Speed: 1 m/s
- Protection: ≥ IP21 *
- Traction system: Single Ackermann | Dual Ackermann |Omni-drive (swerve drive)
- Traction motors: 4 x 1200
- Direction motors: 4 x 500 W
- Battery: LiFePO4 200Ah@48V
- Temperature range: 0° to +45°C
CONTROL
- Controller: Industrial PC Intel i7, Open Architecture based on ROS
- Communication: WiFi 802.11n
- Connectivity: On demand
Accessories
- Laser (Different models)
- 3D Range cameras (ORBBEC)
- Loading station
- Elevation system
- Digital and analog modules I/O
- Magnetic guidance sensors
