2.000 KG OF PAYLOAD
INDOOR ENVIRONMENTS
UP TO 18 H. OF AUTONOMY

Autonomous AMR for large & heavy loads

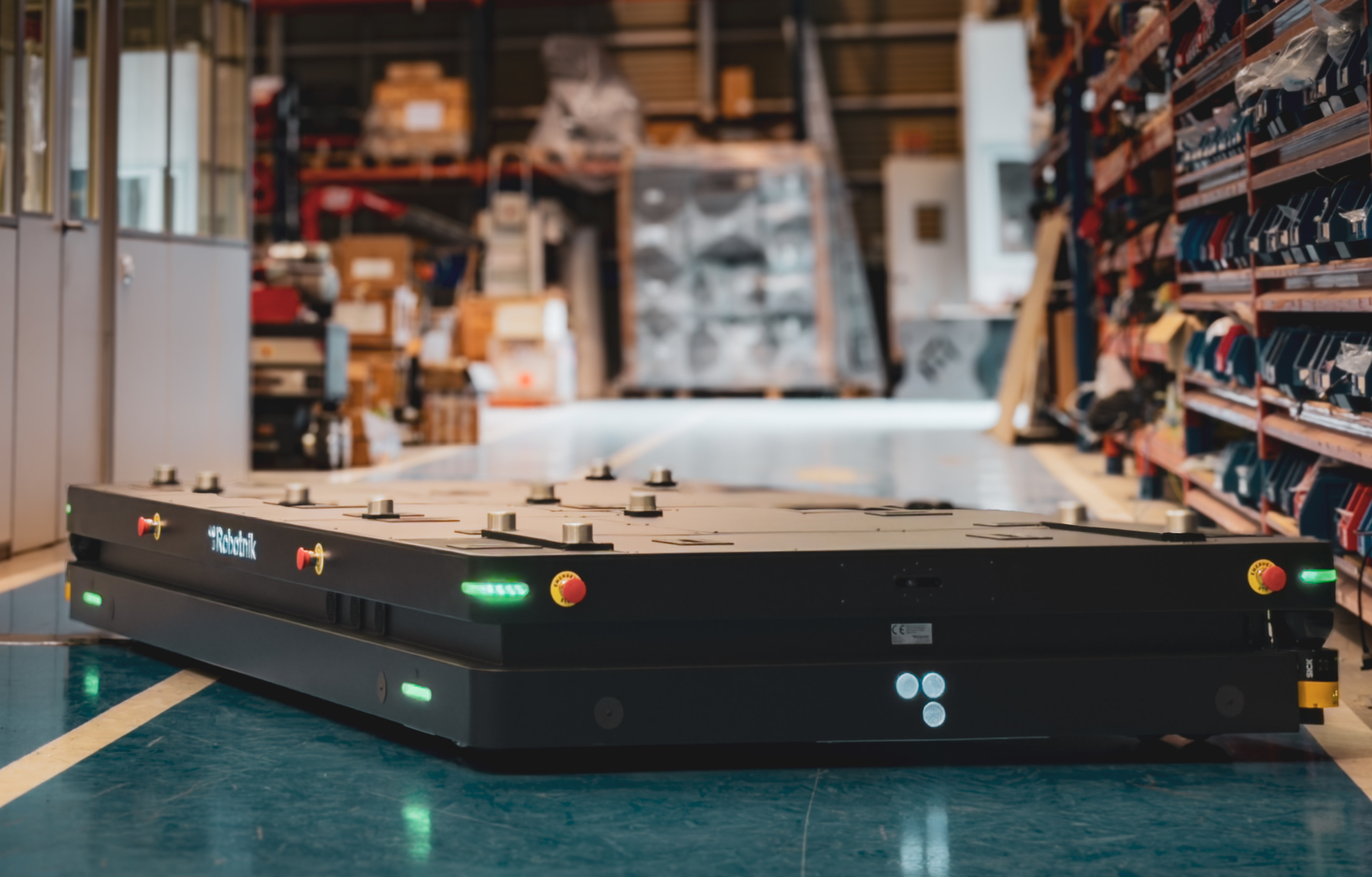

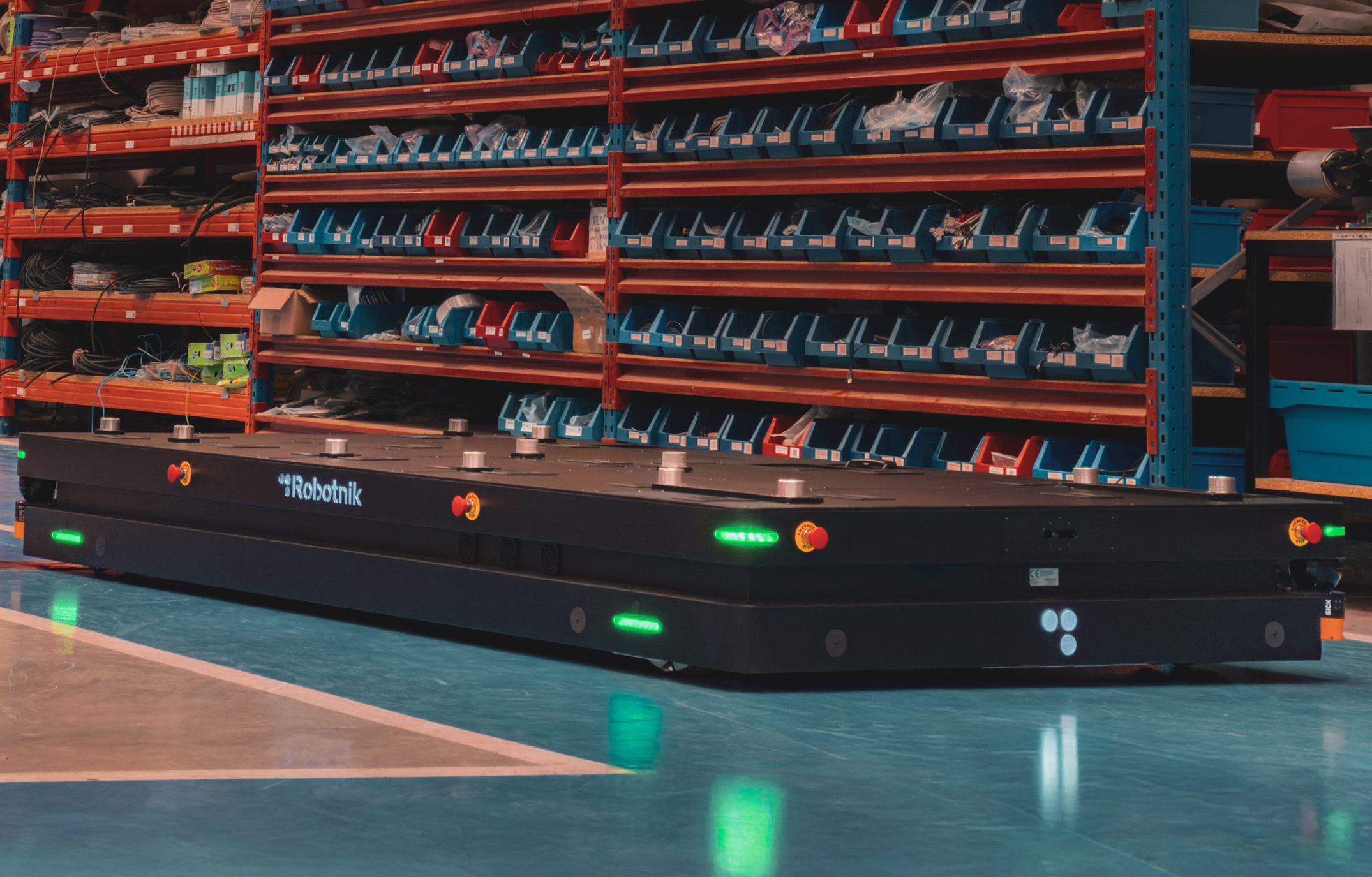

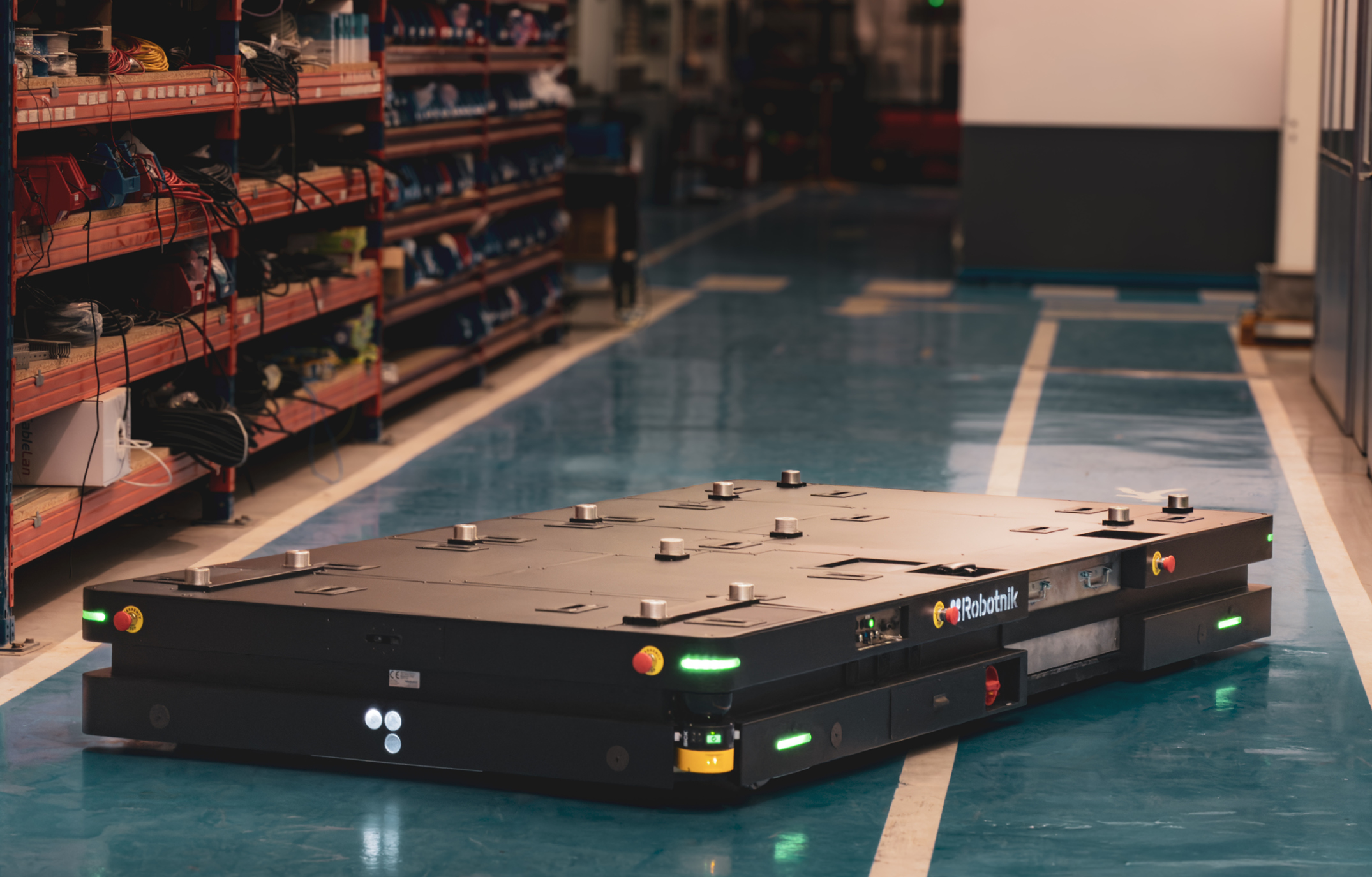

The RB-ROBOUT mobile robot is designed to transport heavy loads of up to 1 tonne, while the special RB-ROBOUT XL unit can handle loads of up to 2 tonnes. This customized robot version is optimized for indoor industrial settings, including factories and warehouses with flat floors, and features enhanced payload capacity.

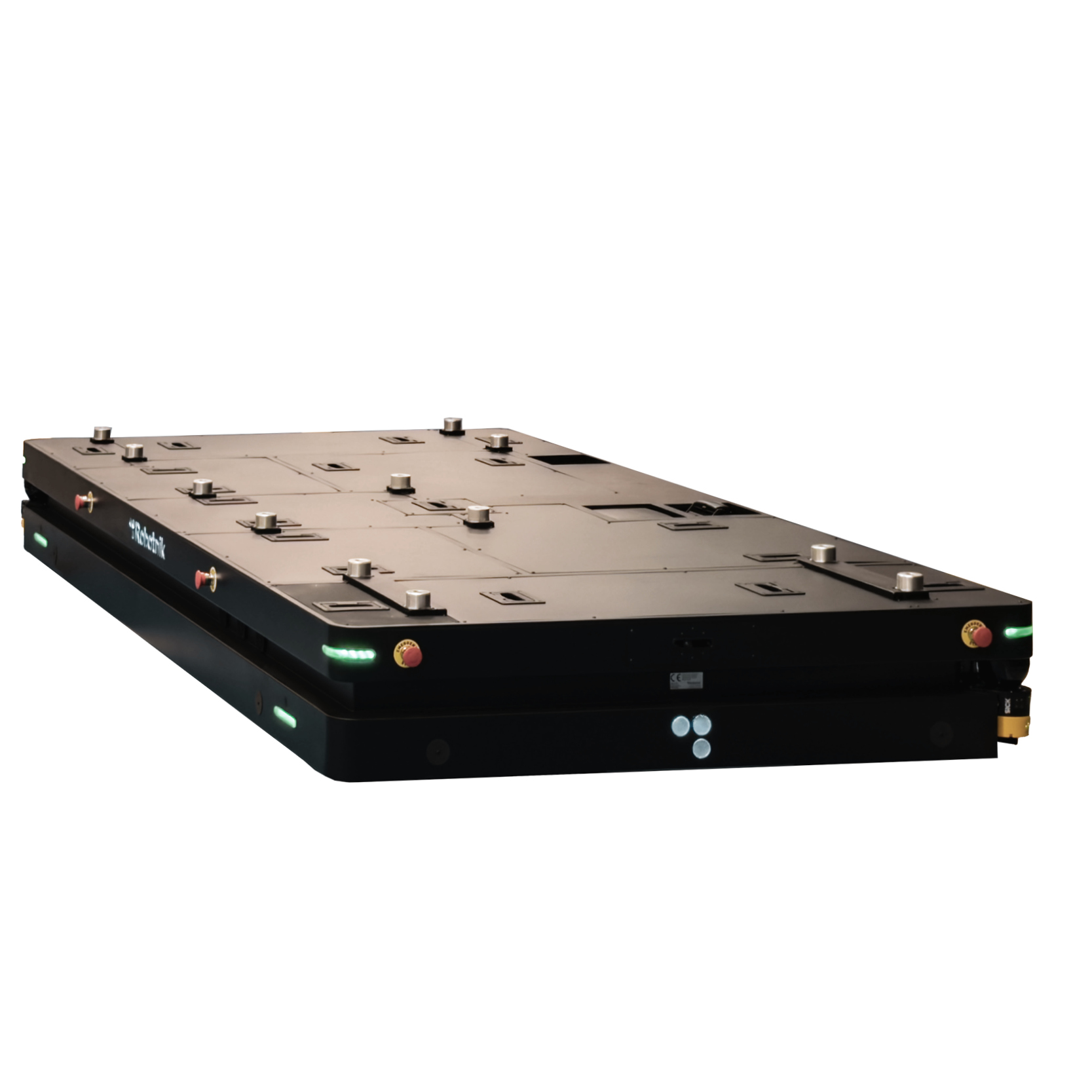

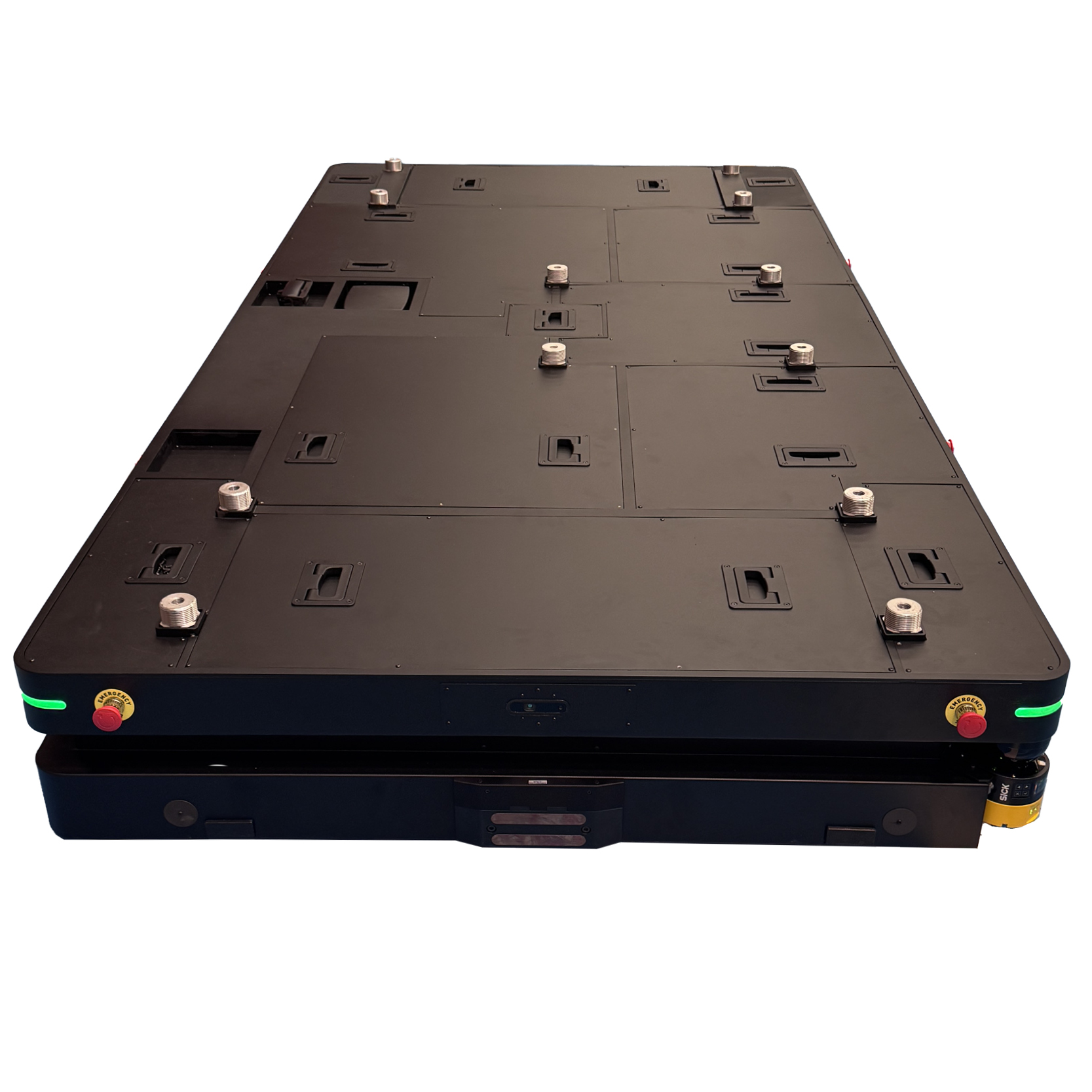

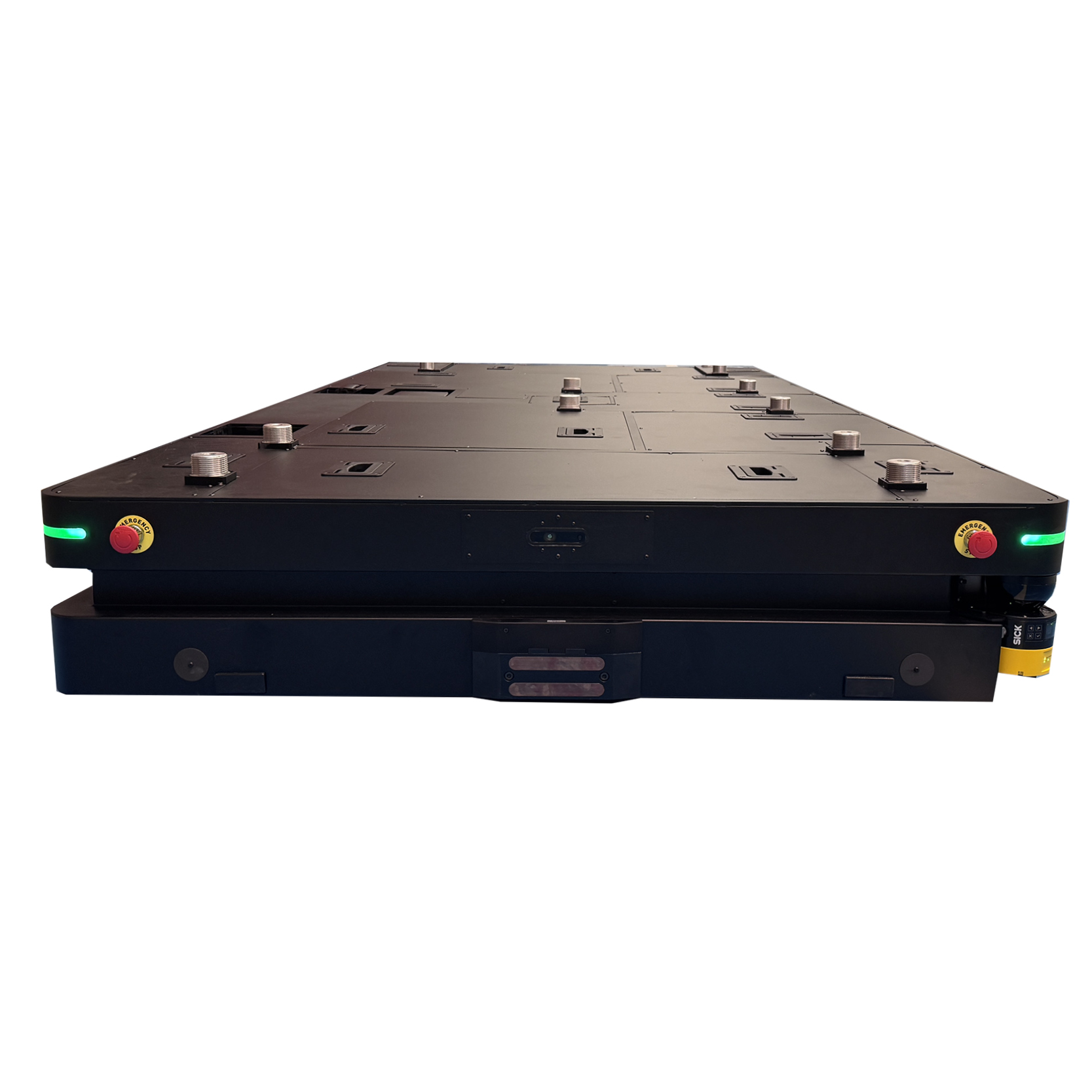

Featuring omnidirectional kinematics, the RB-ROBOUT XL’s low-profile steel “mouse” design and compact dimensions make it ideal for transporting material trolleys or carrying loads directly on the platform.
Equipped with safety lasers, the RB-ROBOUT XL is a fully autonomous and collaborative robot capable of sharing workspace with operators intelligently. It detects obstacles and dynamically selects alternative routes, while its omnidirectional platform ensures optimized trajectory planning.
The robot can navigate to predefined points, move from its current position, approach a load, or reach a designated marker. Operation is simple and intuitive through its ROS-based architecture or communication interface.
MECHANICAL

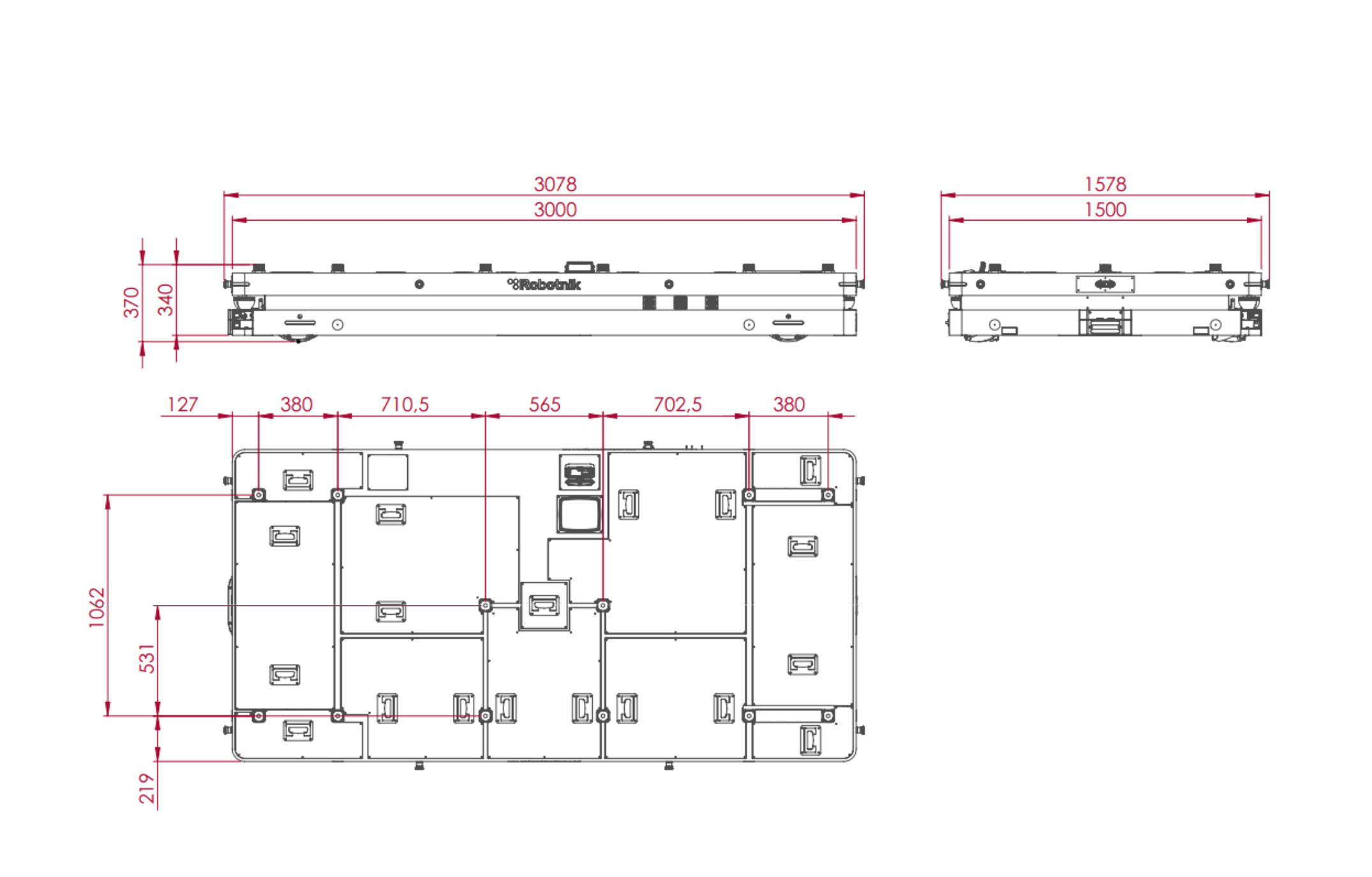

- Dimensions: 3.078 x 1.578 x 370 mm
- Weight: 790 kg
- Payload: Up to 2.00 kg
- Speed: 0.5 m/s
- Environment: Indoor
- Autonomy: Up to 16 h
- Traction motors: 4 x 750 W with break
- Traction system: Omnidirectional
- Localization system: SLAM / Magnetic guide
- Temperature range: 0º C to +45º C
- Battery: 2000Ah@48VDC
- Anchor points: 12 on the top
COMMUNICATION
- WiFi 02.11a / b // g / n / ac
- Bluetooth 5.1 (5G/4G optional)
CONNECTIVITY
- Controller: Open architecture ROS Integrated CPU with Linux
- Connectivity: USB, RJ45, HDMI, Power supply 12, 24 VDC and batteries
- Robot Safety: Safety laser (2x), Safety PLC E-Stop button (8x), Remote E-Stop
