RISING MOBILE MANIPULATOR

RISING MOBILE MANIPULATOR

Specially designed for intervention, reconnaissance and EOD missions

REQUEST INFORMATION
DOWNLOAD DATASHEET

INTERVENTION, RECONNAISSANCE AND EOD MISSIONS

IP65 ENCLOSURE CLASS

HIGH MOBILITY AND DEXTERITY

High mobility and dexterity

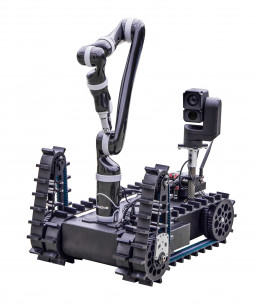

RISING is a mobile manipulator specially designed for intervention, reconnaissance and EOD missions. It’s a high mobility, robust, modular, easy transportable and easy to deploy robot platform.

RISING can mount different EOD disruptors and specific sensors and has a high mobility kinematic configuration that allows accessing adverse and rough terrains and stair climbing. The robot platform has IP65 enclosure class.

The RISING arm has 6 DOF, a payload of 2,4 kg and mounts a interchangeable gripper.

RISING APPLICATIONS

Intervention missions

Remote monitoring

Rescue and surveillance

Dangerous environments

BLUEPRINTS

Technical Specifications

MECHANICAL

  • Dimensions: 749 mm x 537 mm x 252 mm (Folded)/ 967 mm x 537 mm x 252 mm (Extended)
  • Weight: 37 Kg (without arm)/ 42 Kg (with arm)
  • Platform payload: 20 Kg
  • Speed: 2,5 m/s
  • Protection: IP65 (without arm)
  • Traction system: 2 tracks and 2 flippers
  • Autonomy: 3,5 h
  • Battery: LiPO48V
  • Temperature range: 0°C to +50°C
  • Maximum slope: 80 %

CONTROL

  • Controller: Industrial PC Intel i7, Open Architecture based on ROS
  • Communication: Multiprotocol system: Wire / WiFi
  • Connectivity: Internal: USB, RS232, Ethernet, WiFi, CANBus
REQUEST INFORMATION

INTERVENTION, RECONNAISSANCE AND EOD MISSIONS

IP65 ENCLOSURE CLASS

HIGH MOBILITY AND DEXTERITY

High mobility and dexterity

RISING is a mobile manipulator specially designed for intervention, reconnaissance and EOD missions. It’s a high mobility, robust, modular, easy transportable and easy to deploy robot platform.

RISING can mount different EOD disruptors and specific sensors and has a high mobility kinematic configuration that allows accessing adverse and rough terrains and stair climbing. The robot platform has IP65 enclosure class.

The RISING arm has 6 DOF, a payload of 2,4 kg and mounts a interchangeable gripper.

DOWNLOAD DATASHEET

MECHANICAL

  • Dimensions folded: 749 x 537 x 252 mm
  • Dimensions extended: 967 x 537 x 252 mm
  • Weight without arm: 37 kg
  • Weight without arm: 42 kg
  • Payload: Up to 20 kg
  • Speed: 2,5 m/s
  • Environment: Outdoor
  • Enclosure class: IP65 (without arm)
  • Autonomy: Up to 3,5 h
  • Traction system: 2 tracks & 2 flippers
  • Localization system: SLAM
  • Temperature range:  0º C to +50º C
  • Max. slope: 80%

COMMUNICATION

  • WiFi 802.11 b/g/n/ac
  • Bluetooth 4.0

CONNECTIVITY

  • USB
  • Ethernet
  • HDMI
  • CANBus
  • DC Power Output
