1.000 KG OF PAYLOAD

LIFTING UNIT

INDOOR ENVIRONMENTS

UP TO 8 H OF AUTONOMY


AMR to automate indoor transport of loads up to 1 tonne in logistics or manufacturing environments

The RB-ROBOUT mobile robot is the solution for transporting heavy loads up to 1 tonne in indoor industrial environments such as factories or warehouses.

RB-ROBOUT has a low steel ‘mouse’ design and compact dimensions, making it ideal for transporting both material trolleys and loads directly on the platform.

The dolly has omnidirectional kinematics based on 4 high-powered drive wheels.

Thanks to the safety lasers, the RB-ROBOUT is an autonomous and collaborative robot able to share the working space with the operators in an intelligent way by detecting obstacles, searching for alternative routes and optimising trajectories.

The robot is capable of operating with different types of localization: SLAM (map-based navigation) or philoguided (for very high precision requirements), and is able to use different modes in the same installation.

It has a wide range of optional components and accessories to suit the tasks to be performed:

  • Roller path / Conveyor belt
  • Load elevators
  • Pallet or box supports

All Robotnik robots are modular and its architecture is based on ROS, which facilitates their adaptation to the particularities of the application. The robot has an interface to make the system easy to manage by any user.

DOWNLOAD DATASHEET

TECHNICAL SPECIFICATIONS

MECHANICAL

  • Dimensions:  1.758 x 891 x 372 mm
  • Weight:  350 kg
  • Payload: Up to 1.000 kg
  • Speed: 1,1 m/s
  • Environment: Indoor
  • Enclosure class: IP42
  • Autonomy: Up to 10 h
  • Traction motors: 4 x 750 W with brake
  • Kinematics: Omnidirectional
  • Localization system: SLAM / Magnetic guide
  • Temperature range: 0ºC to +50ºC
  • Max. slope: 11%
  • Anchor points: 6 on the top

COMMUNICATION

  • WiFi 802.11 b/g/n/ac
  • Bluetooth 4.0

CONNECTIVITY

  • USB x3
  • Ethernet x3
  • HDMI x1
  • DC Power Output

COMPONENTS

INCLUDED

  • CPU Intel i7
  • Safety Pack:
    • 2D safety scanner x2
    • Safety PLC
  • Front & back RGBD camera
  • 4G Router
  • IMU
  • Battery 48VDC@100Ah
  • Mecanum high payload wheels
    • Payload: 1.000 kg
  • Charging station

OPTIONAL

  • 5G Router
  • AI + Vision package
  • 3D Localization and navigation package
  • Magnetic guide navigation
  • Roller conveyor

BLUEPRINTS

APPLICATIONS

LOGISTICS

INDOOR TRANSPORT

LOADING & UNLOADING

INDUSTRIAL APPLICATIONS


Omnidirectional mobile manipulator for operations up to 12,5 kg.

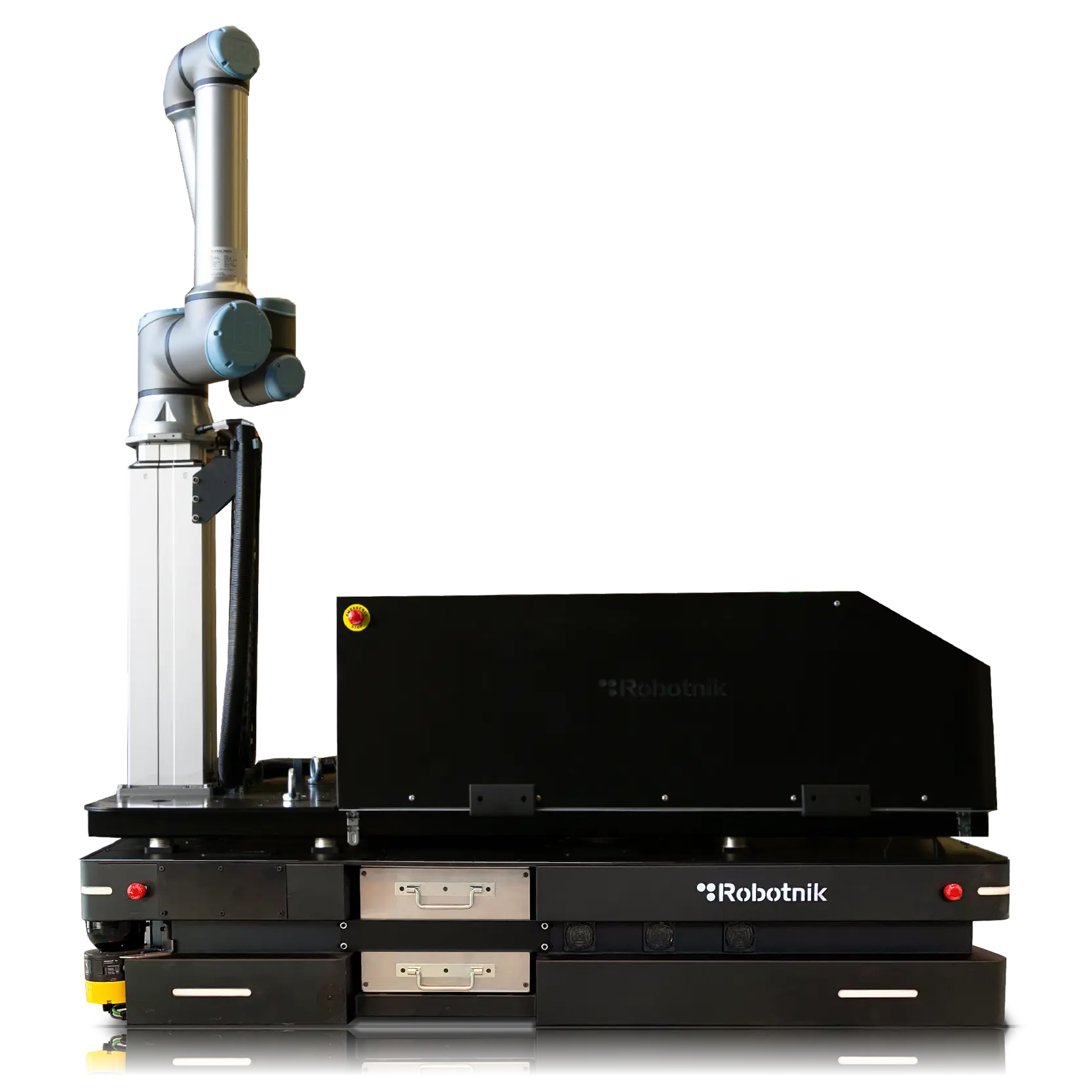

RB-ROBOUT+ is the solution for automating large manipulation operations with workpieces or components weighing up to 12,5 kg. It stands out as the only omnidirectional motion robot manipulator with such a high payload.

This mobile manipulator is ready for plug-and-play integration with Universal Robots’ UR10e arm and is especially useful for masking, coating or dispensing, welding, grinding and polishing or material handling.

With an autonomy of up to 8 hours (depending on arm configuration), it enables stable operation, reducing downtime and increasing the productivity of industrial processes.

The mobile platform has omnidirectional kinematics that allow it to move in any direction and rotate on its Z axis, enabling precise manoeuvring in confined spaces or congested areas. Its omni-directional mobility, with a full 360° range, optimises trajectories and makes it easy to adapt to various operational applications.

It is a CE-certified collaborative mobile manipulator that integrates safety PLC and Lidars and SICK safety architecture to ensure safe interactions with people and other equipment.

RB-ROBOUT+ is modular with ROS-based architecture, making it easy to adapt to the specifics of any application. In addition, it has an intuitive Human-Machine Interface that simplifies the management of the robot by the user.

DOWNLOAD DATASHEET

TECHNICAL SPECIFICATIONS

MECHANICAL

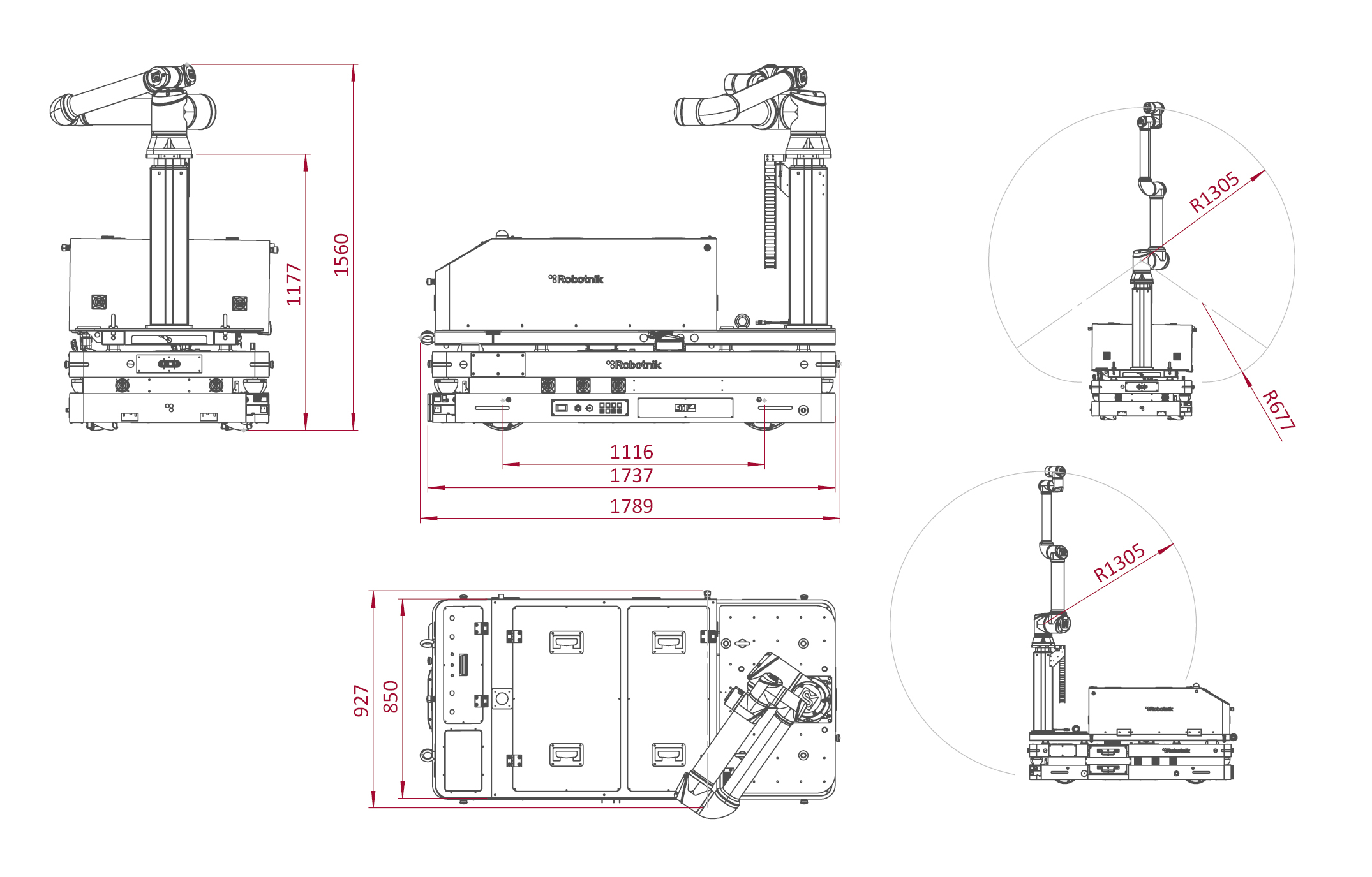

  • Dimensions: 1.789 x 927 x 1.560 mm
  • Weight:  600 kg
  • Payload: 800 - 1.000 kg*
  • Speed: 1,1 m/s
  • Environment: Indoor
  • Enclosure class: IP41
  • Autonomy: Up to 8 h*
  • Traction motors: 4 x 600 W with brake
  • Kinematics: Omnidirectional
  • Localization system: SLAM / Magnetic guide
  • Temperature range: 5ºC to +40ºC
  • Max. slope: 11%

*Depending on arm configuration*

COMMUNICATION

  • WiFi 802.11 a/b/g/n/ac
  • Bluetooth 5.1

CONNECTIVITY

  • USB x3
  • Ethernet x3
  • HDMI x1
  • DC Power Output

COMPONENTS

INCLUDED

  • CPU Intel i7
  • Safety Pack:
    • 2D safety scanner x2
    • Safety PLC
  • Front & back RGBD camera
  • 4G Router
  • IMU
  • Robotic arm: UR10e
    • Payload: 12,5 Kg
    • Reach: 900 mm
  • Battery 48VDC@100Ah
  • Mecanum high payload wheels
    • Payload: 1.000 kg
  • Charging station

OPTIONAL

  • 5G Router
  • AI + Vision package
  • 3D Localization and navigation package
  • Magnetic guide navigation

BLUEPRINTS

APPLICATIONS

PICK & PLACE

MATERIAL HANDLING

GRINDING & POLISHING

WELDING


Omnidirectional mobile manipulator for operations up to 20 kg.

RB-ROBOUT+ is the solution for automating large manipulation operations with workpieces or components weighing up to 20 kg. It stands out as the only omnidirectional motion robot manipulator with such a high payload.

This mobile manipulator is ready for plug-and-play integration with Universal Robots’ UR20 arm and is especially useful for masking, coating or dispensing, welding, grinding and polishing or material handling.

With an autonomy of up to 8 hours (depending on arm configuration), it enables stable operation, reducing downtime and increasing the productivity of industrial processes.

The mobile platform has omnidirectional kinematics that allow it to move in any direction and rotate on its Z axis, enabling precise manoeuvring in confined spaces or congested areas. Its omni-directional mobility, with a full 360° range, optimises trajectories and makes it easy to adapt to various operational applications.

It is a CE-certified collaborative mobile manipulator that integrates safety PLC and Lidars and SICK safety architecture to ensure safe interactions with people and other equipment.

RB-ROBOUT+ is modular with ROS-based architecture, making it easy to adapt to the specifics of any application. In addition, it has an intuitive Human-Machine Interface that simplifies the management of the robot by the user.

DOWNLOAD DATASHEET

TECHNICAL SPECIFICATIONS

MECHANICAL

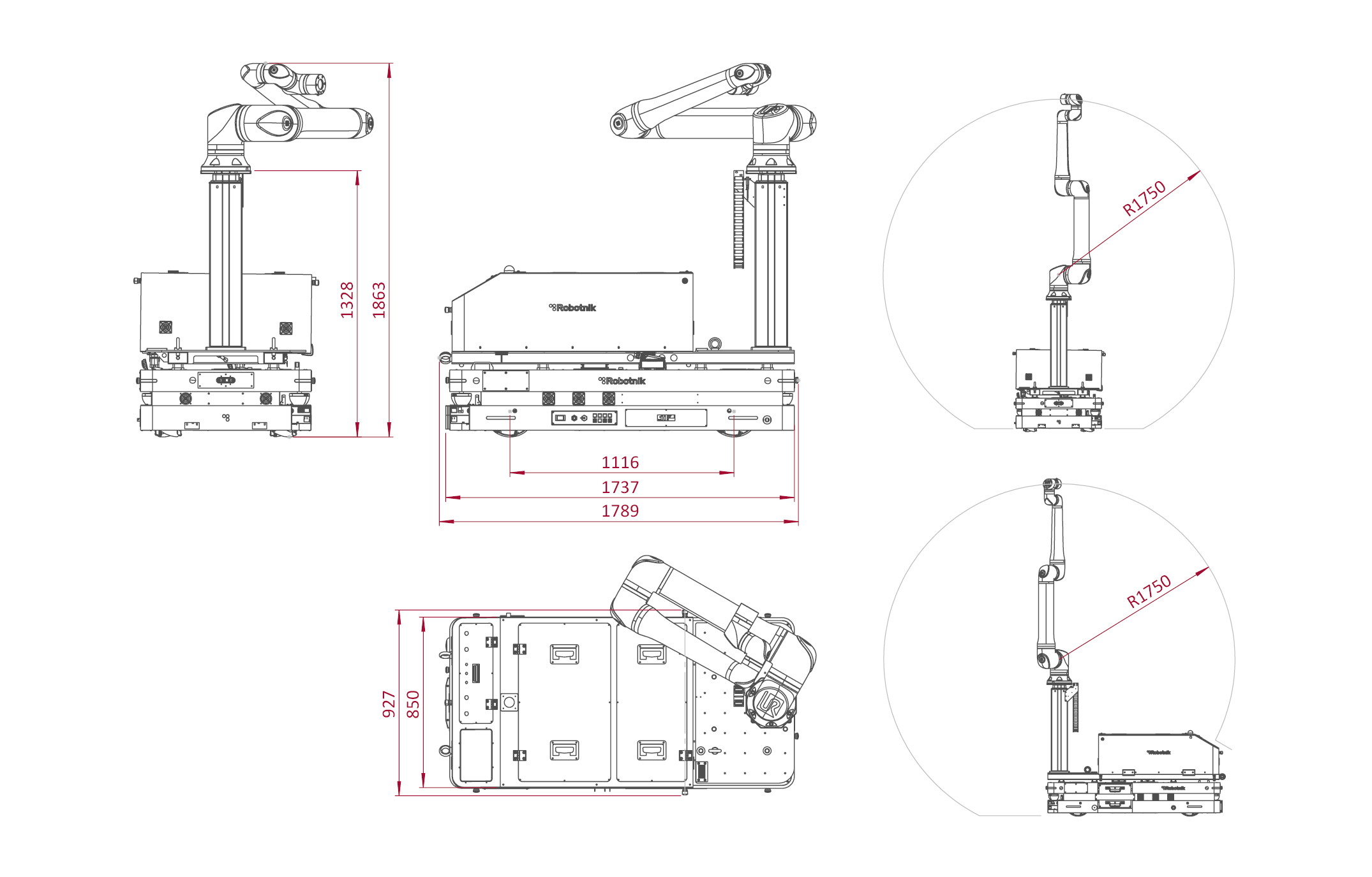

  • Dimensions: 1.789 x 927 x 1.863 mm
  • Weight:  600 kg
  • Payload: 800 - 1.000 kg*
  • Speed: 1,1 m/s
  • Environment: Indoor
  • Enclosure class: IP41
  • Autonomy: Up to 8 h*
  • Traction motors: 4 x 600 W with brake
  • Kinematics: Omnidirectional
  • Localization system: SLAM / Magnetic guide
  • Temperature range: 5ºC to +40ºC
  • Max. slope: 11%

*Depending on arm configuration*

COMMUNICATION

  • WiFi 802.11 a/b/g/n/ac
  • Bluetooth 5.1

CONNECTIVITY

  • USB x3
  • Ethernet x3
  • HDMI x1
  • DC Power Output

COMPONENTS

INCLUDED

  • CPU Intel i7
  • Safety Pack:
    • 2D safety scanner x2
    • Safety PLC
  • Front & back RGBD camera
  • 4G Router
  • IMU
  • Robotic arm: UR20
    • Payload: 20 Kg
    • Reach: 600 mm
  • Battery 48VDC@100Ah
  • Mecanum high payload wheels
    • Payload: 1.000 kg
  • Charging station

OPTIONAL

  • 5G Router
  • AI + Vision package
  • 3D Localization and navigation package
  • Magnetic guide navigation

BLUEPRINTS

APPLICATIONS

PICK & PLACE

MATERIAL HANDLING

GRINDING & POLISHING

WELDING


Omnidirectional mobile manipulator for operations up to 30 kg.

RB-ROBOUT+ is the solution for automating large manipulation operations with workpieces or components weighing up to 30 kg. It stands out as the only omnidirectional motion robot manipulator with such a high payload.

This mobile manipulator is ready for plug-and-play integration with Universal Robots’ UR30 arm and is especially useful for masking, coating or dispensing, welding, grinding and polishing or material handling.

With an autonomy of up to 8 hours (depending on arm configuration), it enables stable operation, reducing downtime and increasing the productivity of industrial processes.

The mobile platform has omnidirectional kinematics that allow it to move in any direction and rotate on its Z axis, enabling precise manoeuvring in confined spaces or congested areas. Its omni-directional mobility, with a full 360° range, optimises trajectories and makes it easy to adapt to various operational applications.

It is a CE-certified collaborative mobile manipulator that integrates safety PLC and Lidars and SICK safety architecture to ensure safe interactions with people and other equipment.

RB-ROBOUT+ is modular with ROS-based architecture, making it easy to adapt to the specifics of any application. In addition, it has an intuitive Human-Machine Interface that simplifies the management of the robot by the user.

DOWNLOAD DATASHEET

TECHNICAL SPECIFICATIONS

MECHANICAL

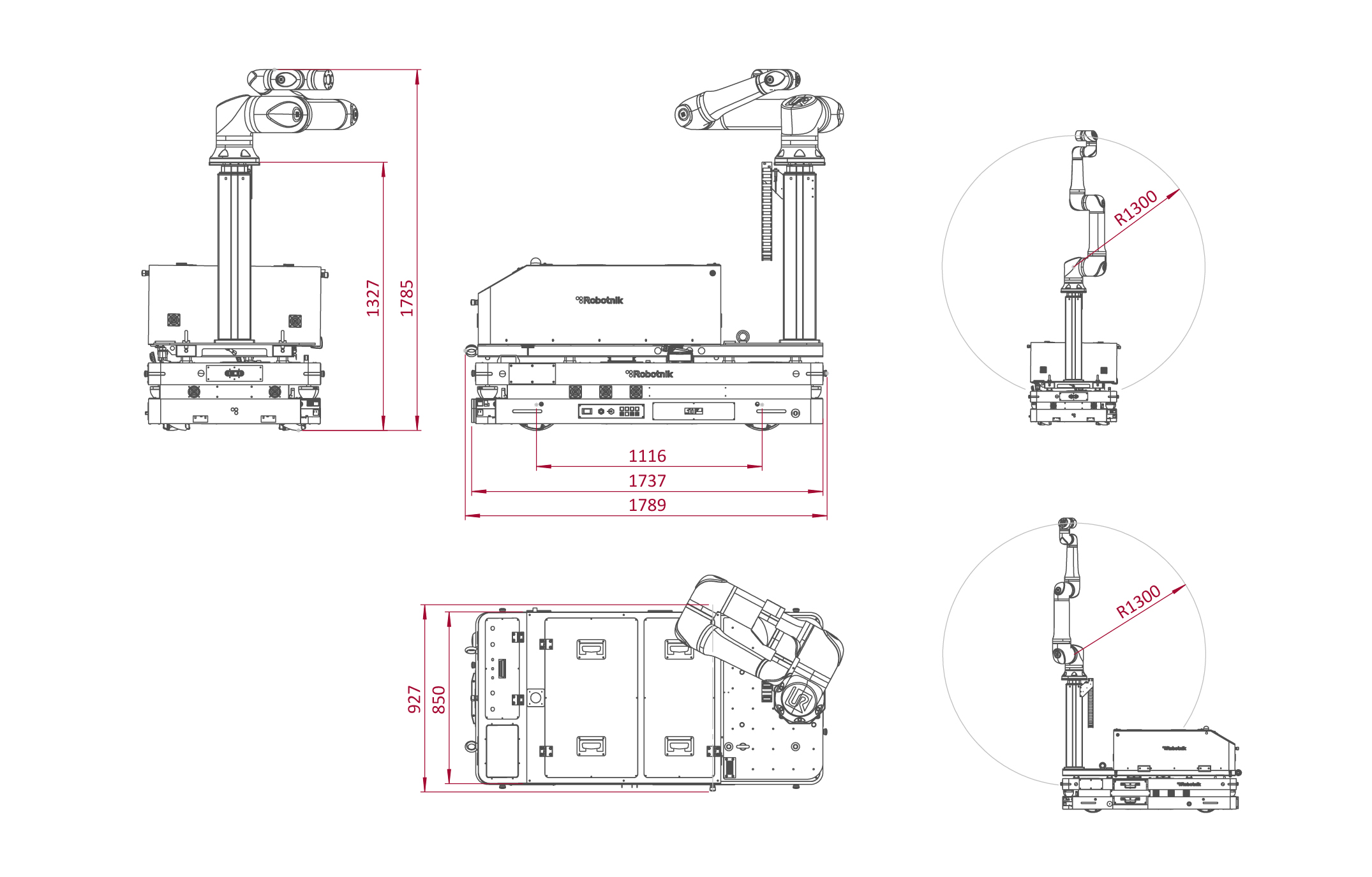

  • Dimensions: 1.789 x 927 x 1.785 mm
  • Weight:  600 kg
  • Payload: 800 - 1.000 kg*
  • Speed: 1,1 m/s
  • Environment: Indoor
  • Enclosure class: IP41
  • Autonomy: Up to 8 h*
  • Traction motors: 4 x 600 W with brake
  • Kinematics: Omnidirectional
  • Localization system: SLAM / Magnetic guide
  • Temperature range: 5ºC to +40ºC
  • Max. slope: 11%

*Depending on arm configuration*

COMMUNICATION

  • WiFi 802.11 a/b/g/n/ac
  • Bluetooth 5.1

CONNECTIVITY

  • USB x3
  • Ethernet x3
  • HDMI x1
  • DC Power Output

COMPONENTS

INCLUDED

  • CPU Intel i7
  • Safety Pack:
    • 2D safety scanner x2
    • Safety PLC
  • Front & back RGBD camera
  • 4G Router
  • IMU
  • Robotic arm: UR30
    • Payload: 30 Kg
    • Reach: 600 mm
  • Battery 48VDC@100Ah
  • Mecanum high payload wheels
    • Payload: 1.000 kg
  • Charging station

OPTIONAL

  • 5G Router
  • AI + Vision package
  • 3D Localization and navigation package
  • Magnetic guide navigation

BLUEPRINTS

APPLICATIONS

PICK & PLACE

MATERIAL HANDLING

GRINDING & POLISHING

WELDING


AMR to automate indoor transport of loads up to 1 tonne in logistics or manufacturing environments

The RB-ROBOUT mobile robot is the solution for transporting heavy loads up to 1 tonne in indoor industrial environments such as factories or warehouses.

RB-ROBOUT has a low steel ‘mouse’ design and compact dimensions, making it ideal for transporting both material trolleys and loads directly on the platform.

The dolly has omnidirectional kinematics based on 4 high-powered drive wheels.

Thanks to the safety lasers, the RB-ROBOUT is an autonomous and collaborative robot able to share the working space with the operators in an intelligent way by detecting obstacles, searching for alternative routes and optimising trajectories.

The robot is capable of operating with different types of localization: SLAM (map-based navigation) or philoguided (for very high precision requirements), and is able to use different modes in the same installation.

It has a wide range of optional components and accessories to suit the tasks to be performed:

  • Roller path / Conveyor belt
  • Load elevators
  • Pallet or box supports

All Robotnik robots are modular and its architecture is based on ROS, which facilitates their adaptation to the particularities of the application. The robot has an interface to make the system easy to manage by any user.

DOWNLOAD DATASHEET

TECHNICAL SPECIFICATIONS

MECHANICAL

  • Dimensions:  1.758 x 891 x 372 mm
  • Weight:  350 kg
  • Payload: Up to 1.000 kg
  • Speed: 1,1 m/s
  • Environment: Indoor
  • Enclosure class: IP42
  • Autonomy: Up to 10 h
  • Traction motors: 4 x 750 W with brake
  • Kinematics: Omnidirectional
  • Localization system: SLAM / Magnetic guide
  • Temperature range: 0ºC to +50ºC
  • Max. slope: 11%
  • Anchor points: 6 on the top

COMMUNICATION

  • WiFi 802.11 b/g/n/ac
  • Bluetooth 4.0

CONNECTIVITY

  • USB x3
  • Ethernet x3
  • HDMI x1
  • DC Power Output

COMPONENTS

INCLUDED

  • CPU Intel i7
  • Safety Pack:
    • 2D safety scanner x2
    • Safety PLC
  • Front & back RGBD camera
  • 4G Router
  • IMU
  • Battery 48VDC@100Ah
  • Mecanum high payload wheels
    • Payload: 1.000 kg
  • Charging station

OPTIONAL

  • 5G Router
  • AI + Vision package
  • 3D Localization and navigation package
  • Magnetic guide navigation
  • Roller conveyor

BLUEPRINTS

APPLICATIONS

LOGISTICS

INDOOR TRANSPORT

LOADING & UNLOADING

INDUSTRIAL APPLICATIONS
