A new era for surveillance & security tasks

RB-WATCHER MOBILE ROBOT

RB-WATCHER MOBILE ROBOT

Autonomous mobile robot for surveillance & security in indoor and outdoor environments.

RELIABILITY

FREE NAVIGATION

PRECISION

INTELLIGENT FUNCTIONS

Autonomous mobile robot for surveillance & security

Security and surveillance tasks require precision and reliability to detect, prevent and mitigate potential hazards or risks in different environments.

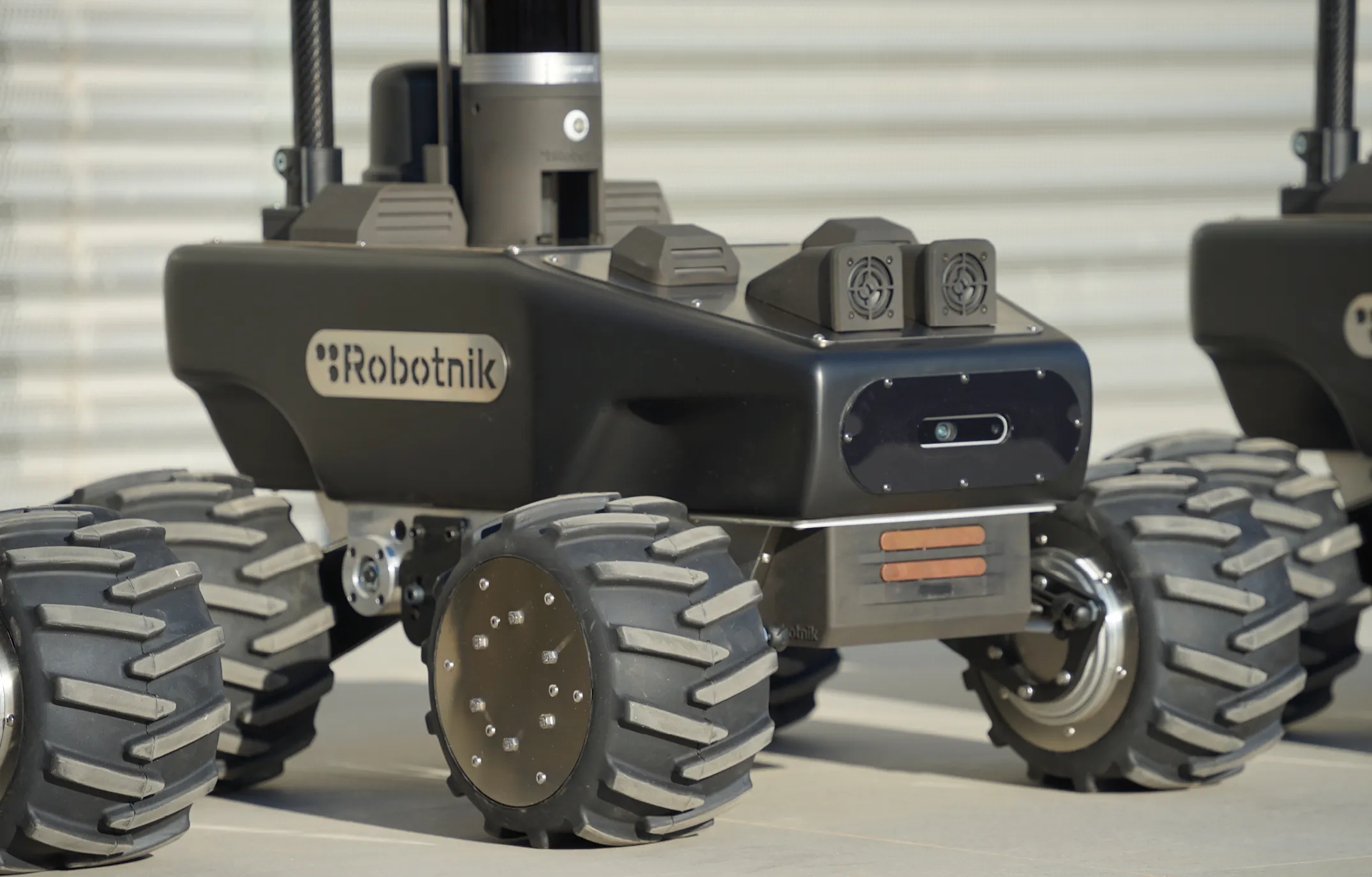

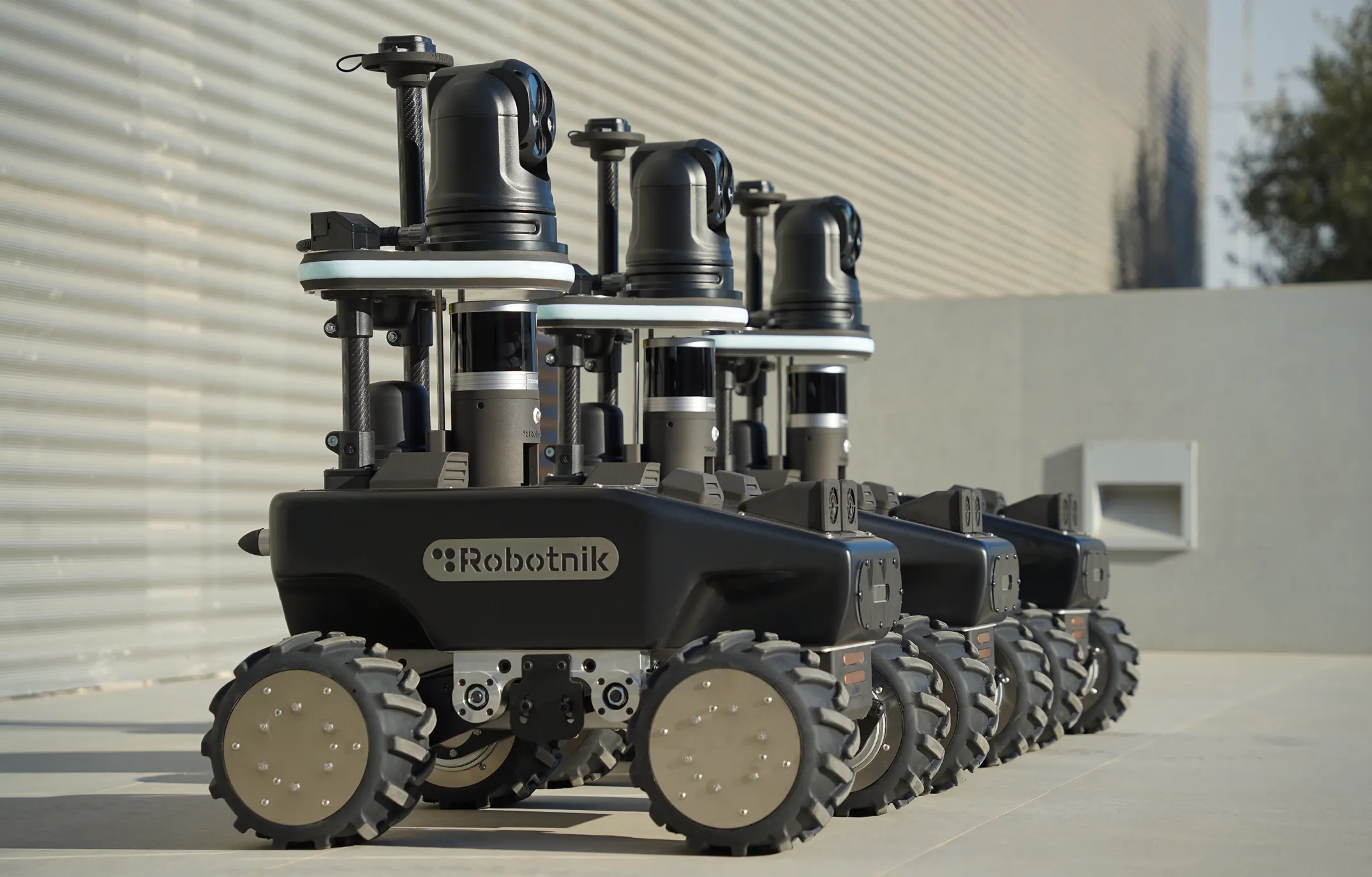

RB-WATCHER is the inspection robot developed to perform surveillance tasks autonomously, safely and efficiently even in challenging and dynamic indoor and outdoor operating environments.

This autonomous mobile robot precisely executes surveillance tasks ranging from patrolling a predetermined area, locating objects and persons (e.g. intruders), detecting fires or collecting quality data. The robot processes all this information and sends it in real time to the control centre for decision making.

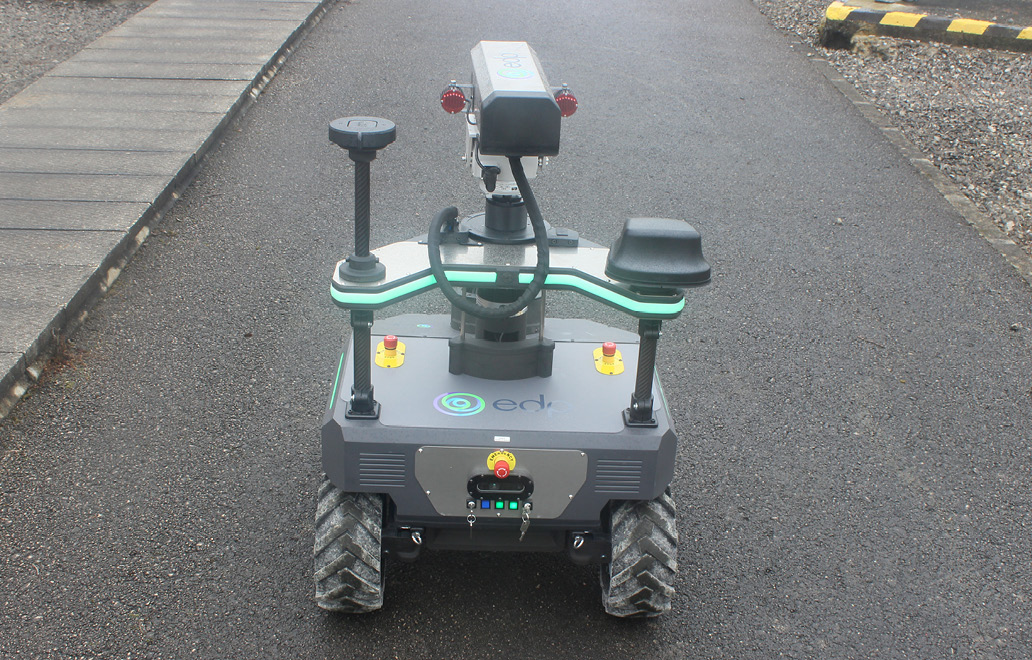

RB-WATCHER has advanced navigation capabilities and incorporates specific inspection sensorisation including a bi-spectral camera, front camera, RTK GPS or microphone.

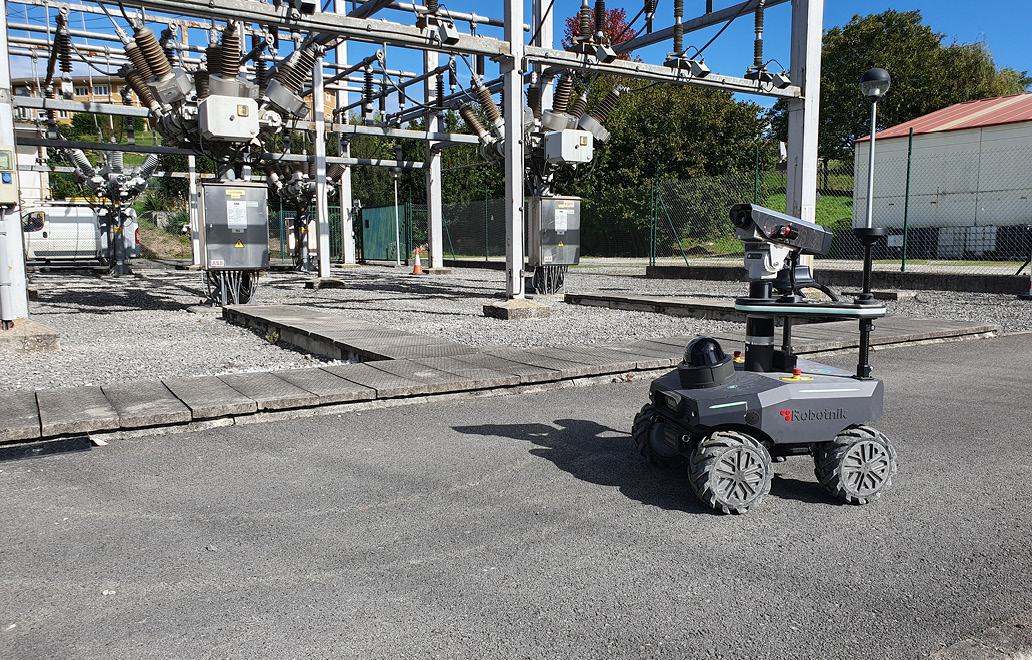

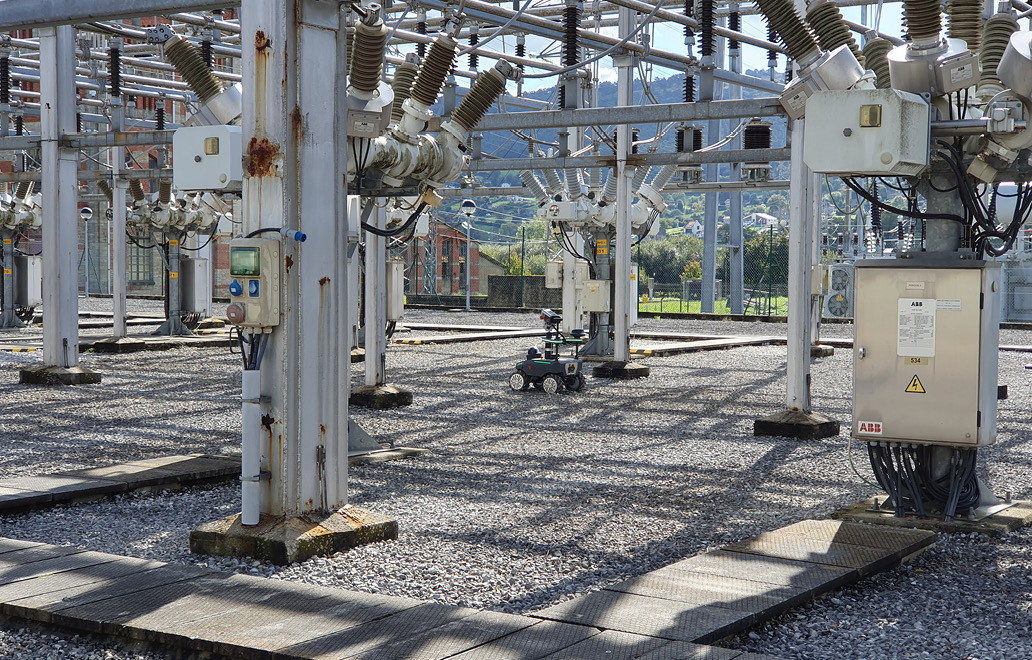

Inspection and surveillance covers different sub-sectors: energy and grids, construction and infrastructure or the oil and gas industry, among others. Each one has its own requirements and RB-WATCHER is designed to meet them.

RB-WATCHER therefore has alternative components such as Leica’s BLK ARC sensor.

This is an autonomous laser scanning module specially designed to be integrated into robots such as RB-WATCHER and is used in construction/infrastructure, energy, oil and gas or waste processing environments, where 3D reconstruction (Reality Capture) is a more suitable solution.

RB-WATCHER APPLICATIONS

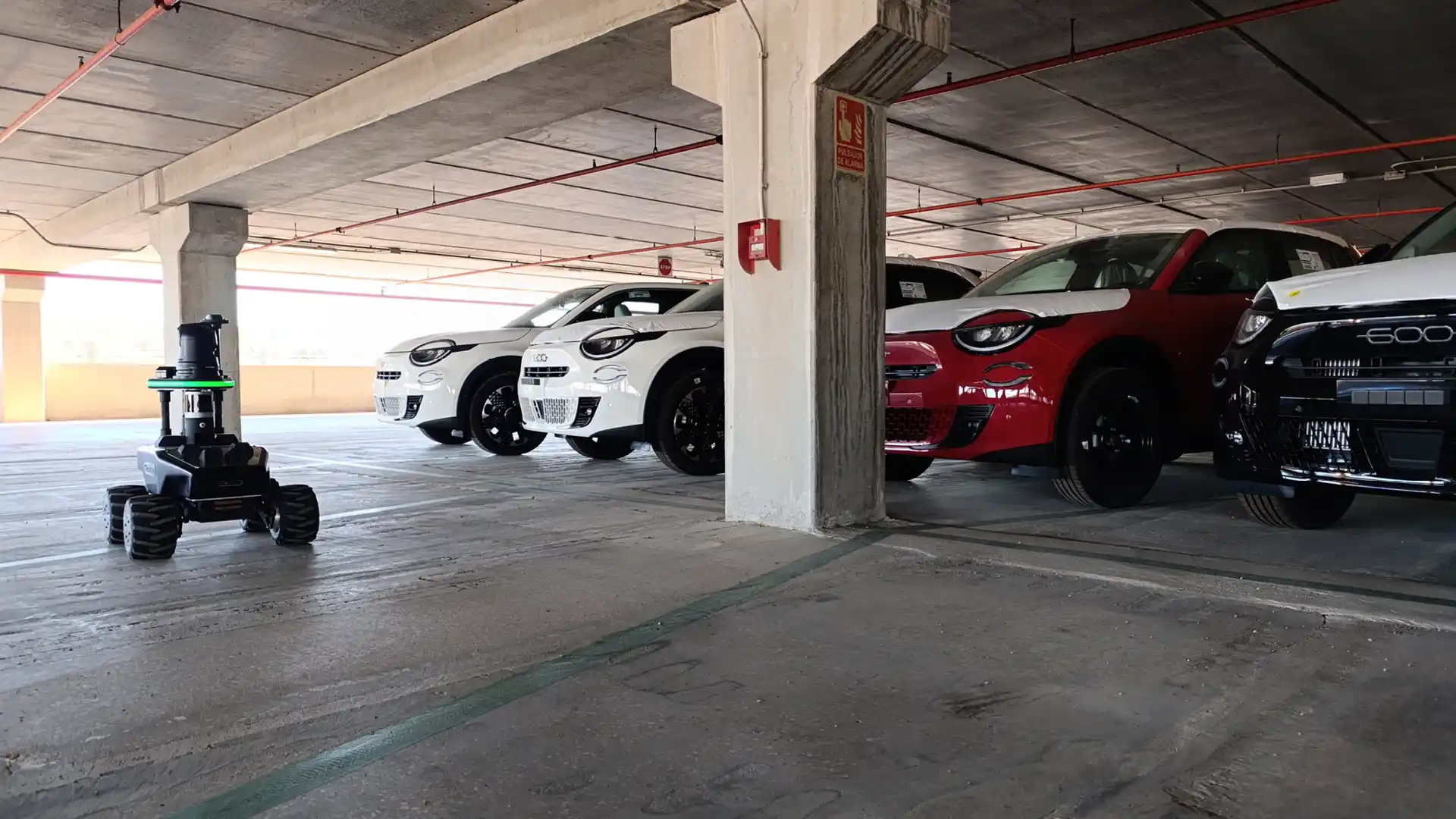

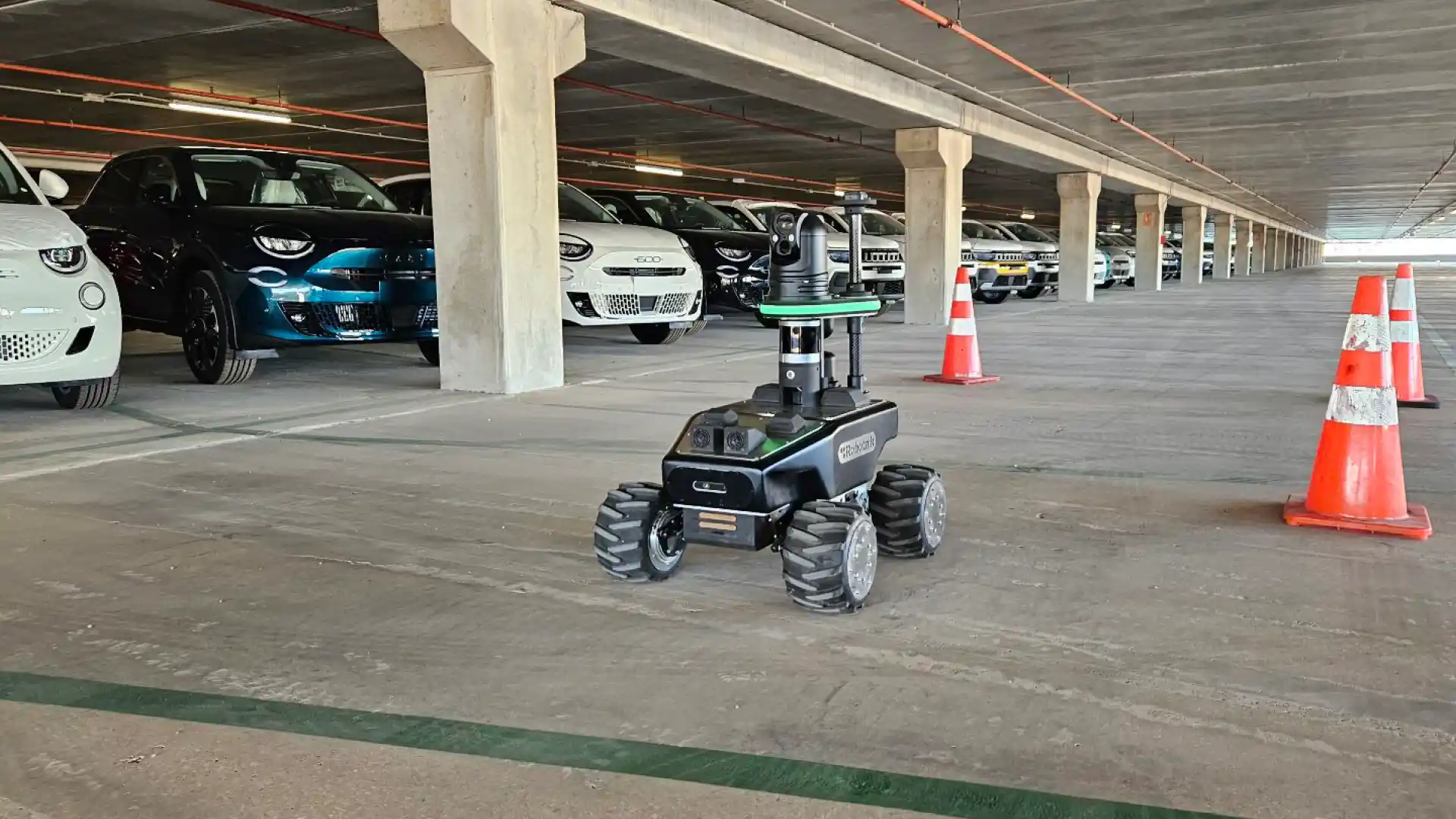

Surveillance & Security

Human detection

Data collection

Fire detection

RB-WATCHER SUCCESS CASES

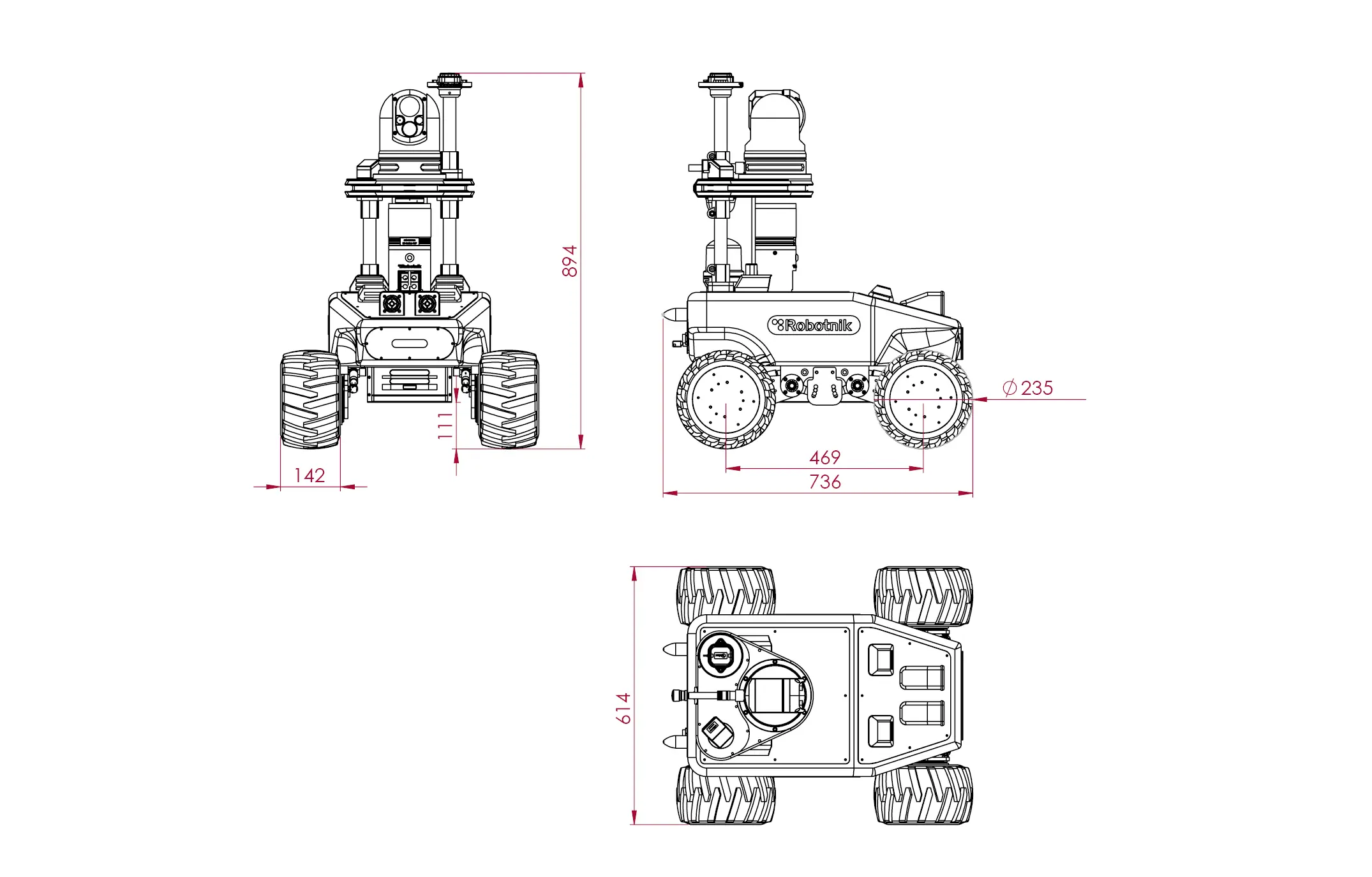

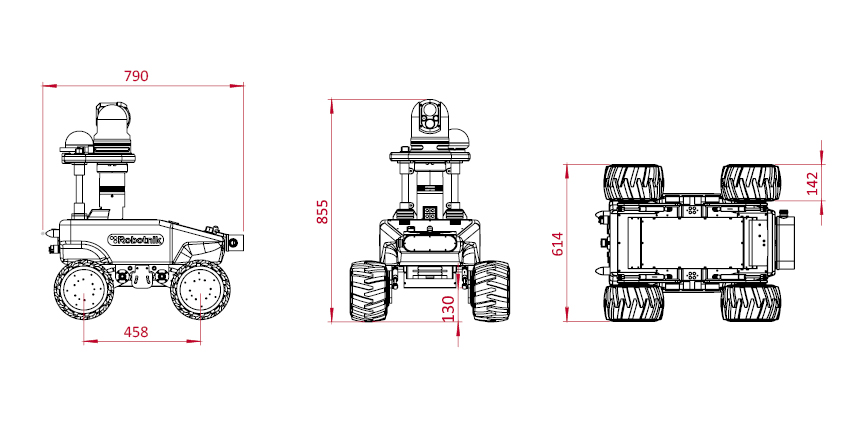

RB-WATCHER BLUEPRINTS

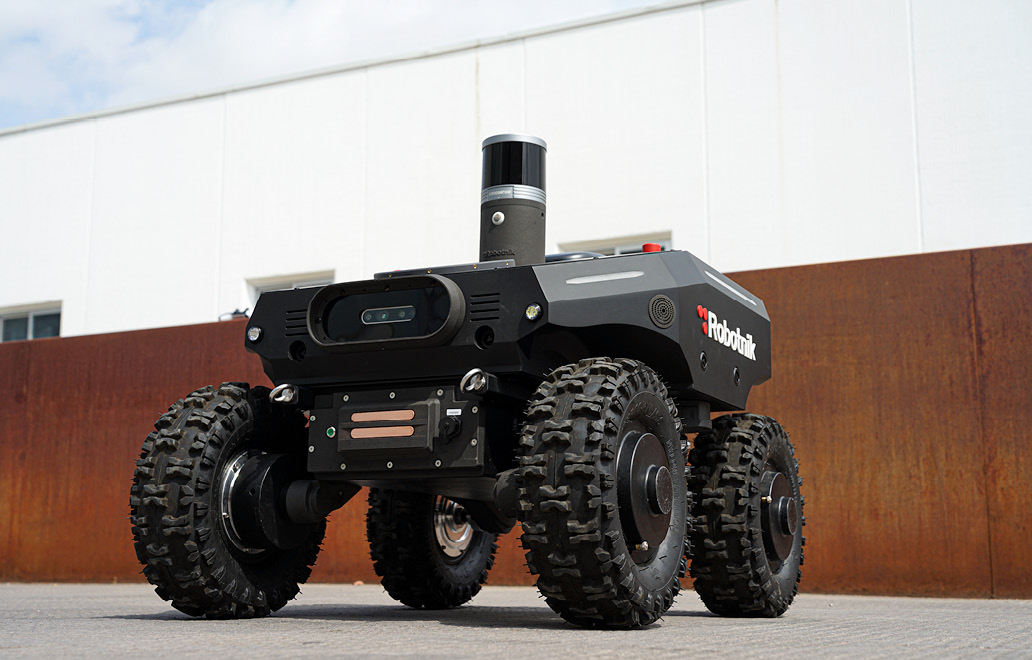

MORE VERSIONS

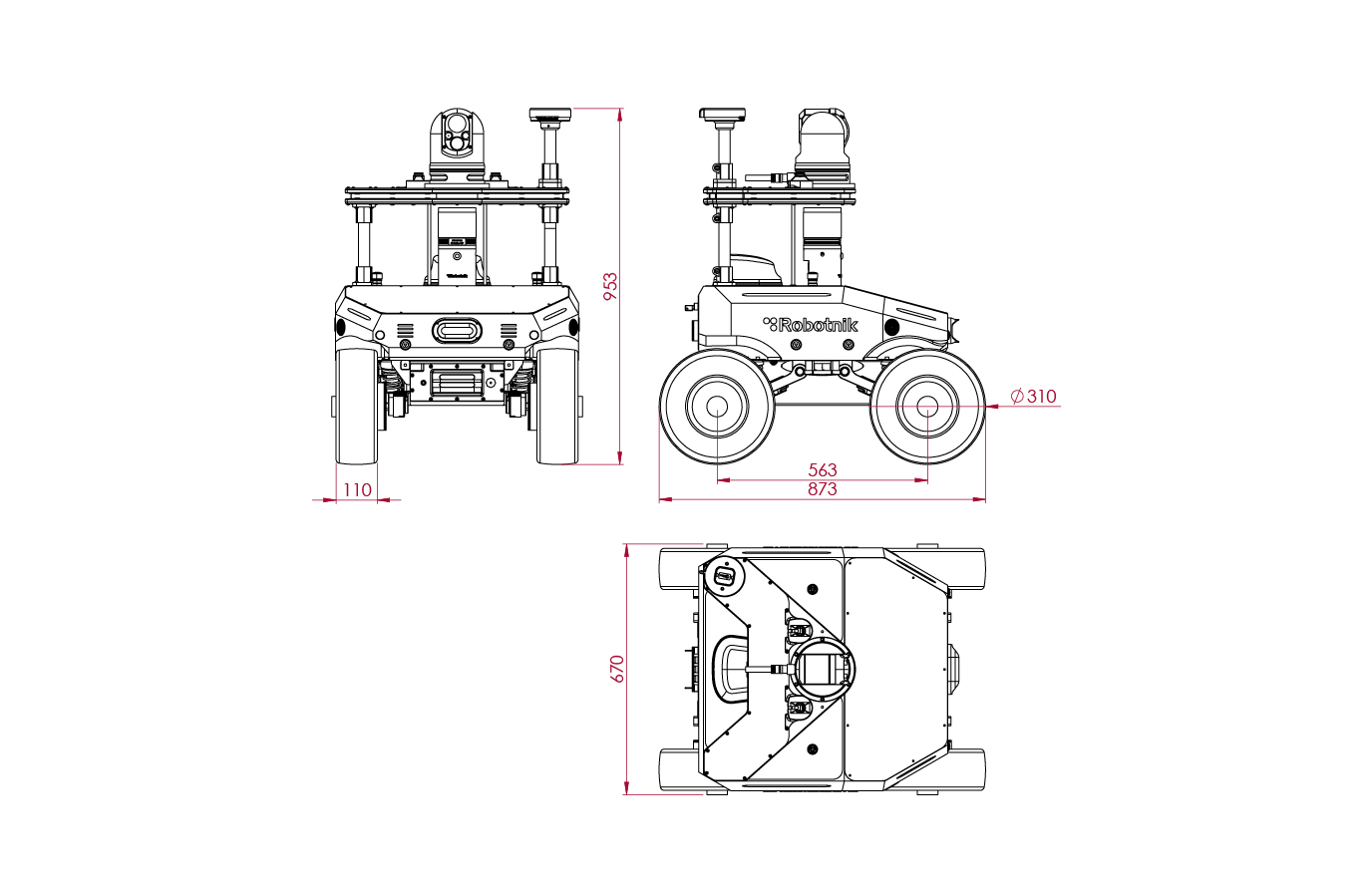

RB-WATCHER REALITY CAPTURE BLUEPRINTS

Technical Specifications

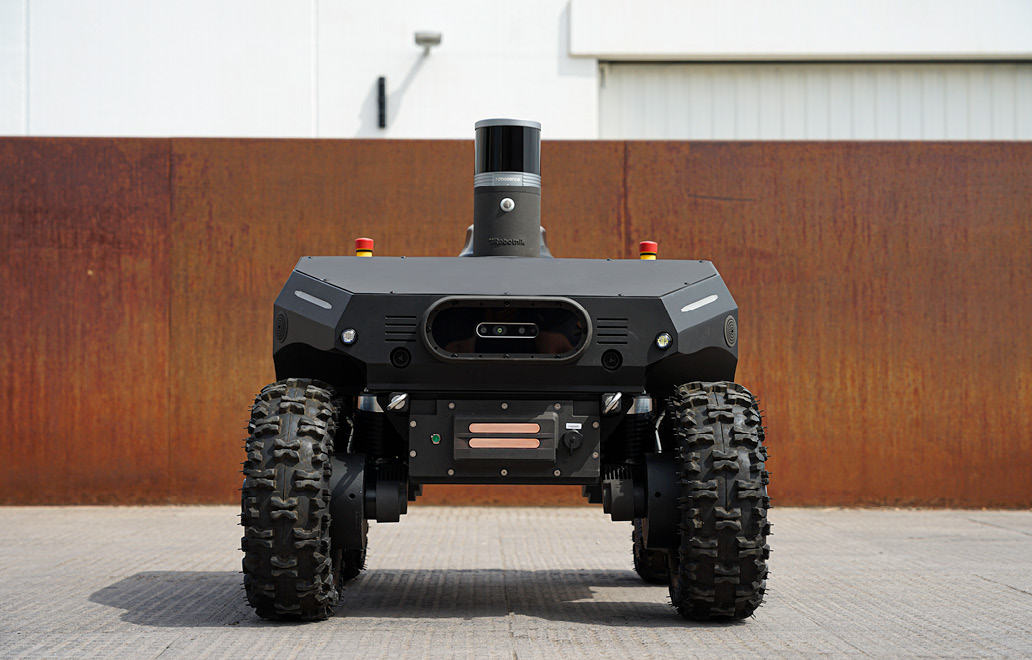

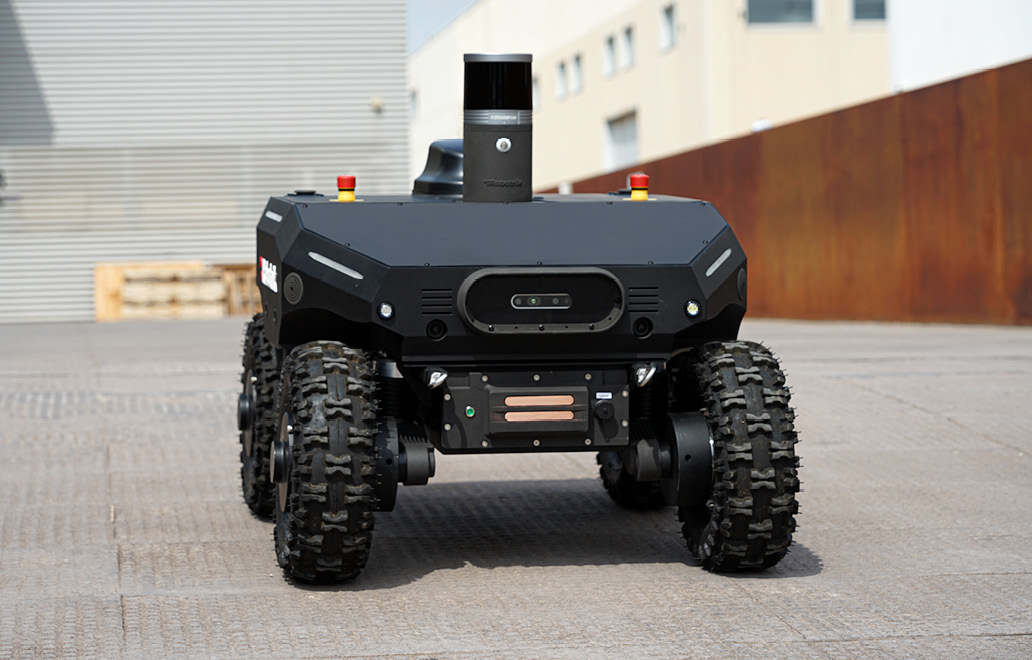

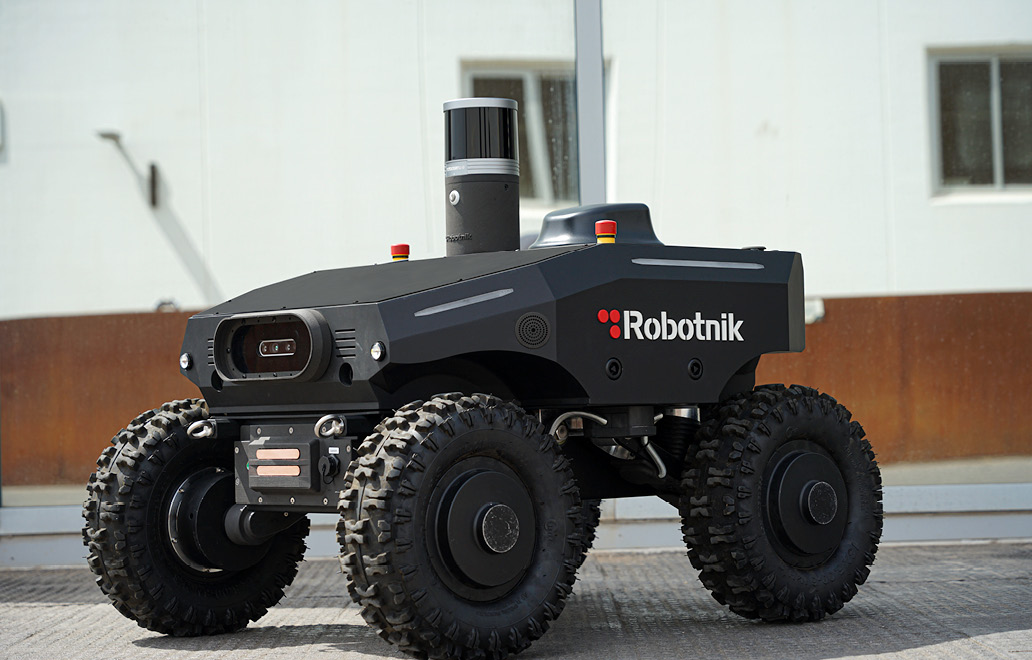

RB-WATCHER REALITY CAPTURE


MECHANICAL

  • Dimensions: 978 x 776 x 994 mm
  • Weight: 73 kg
  • Payload: Up to 65 kg
  • Speed: Up to 2,5 m/s
  • Environment: Indoor / Outdoor
  • Enclosure class: IP53
  • Autonomy: Up to 5h
  • Battery: LiFePO4 15Ah@48VDC
  • Traction motors: 4 x 500 W brushless servomotors
  • Temperature range: -10º to  +45 ºC
  • Maximum slope: 80%

NAVIGATION AND LOCALIZATION SENSORS

  • Front depth camera
  • RTK GPS (Optional)

INSPECTION SENSORS

  • LEICA BLK-ARC

DOWNLOAD DATASHEETMORE INFO

A NEW ERA FOR SURVEILLANCE & SECURITY TASKS

RB-WATCHER is the inspection robot developed to perform surveillance tasks autonomously, safely and efficiently dynamic indoor and outdoor environments

RELIABILITY

FREE NAVIGATION

PRECISION

INTELLIGENT FUNCTIONS


Autonomous mobile robot for surveillance & security

Security and surveillance tasks require precision and reliability to detect, prevent and mitigate potential hazards or risks in different environments.

RB-WATCHER is the inspection robot developed to perform surveillance tasks autonomously, safely and efficiently even in challenging and dynamic indoor and outdoor operating environments.

This autonomous mobile robot precisely executes surveillance tasks ranging from patrolling a predetermined area, locating objects and persons (e.g. intruders), detecting fires or collecting quality data. The robot processes all this information and sends it in real time to the control centre for decision making.

RB-WATCHER has advanced navigation capabilities and incorporates specific inspection sensorisation including a bi-spectral camera, front camera, RTK GPS or microphone.

Inspection and surveillance covers different sub-sectors: energy and grids, construction and infrastructure or the oil and gas industry, among others. Each one has its own requirements and RB-WATCHER is designed to meet them.

RB-WATCHER therefore has alternative components such as Leica’s BLK ARC sensor.

This is an autonomous laser scanning module specially designed to be integrated into robots such as RB-WATCHER and is used in construction/infrastructure, energy, oil and gas or waste processing environments, where 3D reconstruction (Reality Capture) is a more suitable solution.

All Robotnik robots are fully customisable and based on ROS.

DOWNLOAD DATASHEET

MECHANICAL

  • Dimensions: 731 x 614 x 904 mm
  • Weight:   73 kg
  • Payload: Up to 50 kg
  • Speed: 2,5 m/s
  • Environment: Indoor / Outdoor
  • Enclosure class: IP54
  • Autonomy: Up to 5 h
  • Traction motors:  4 x 500W with brake
  • Traction system: Skid steering / Omnidirectional (mecanum)

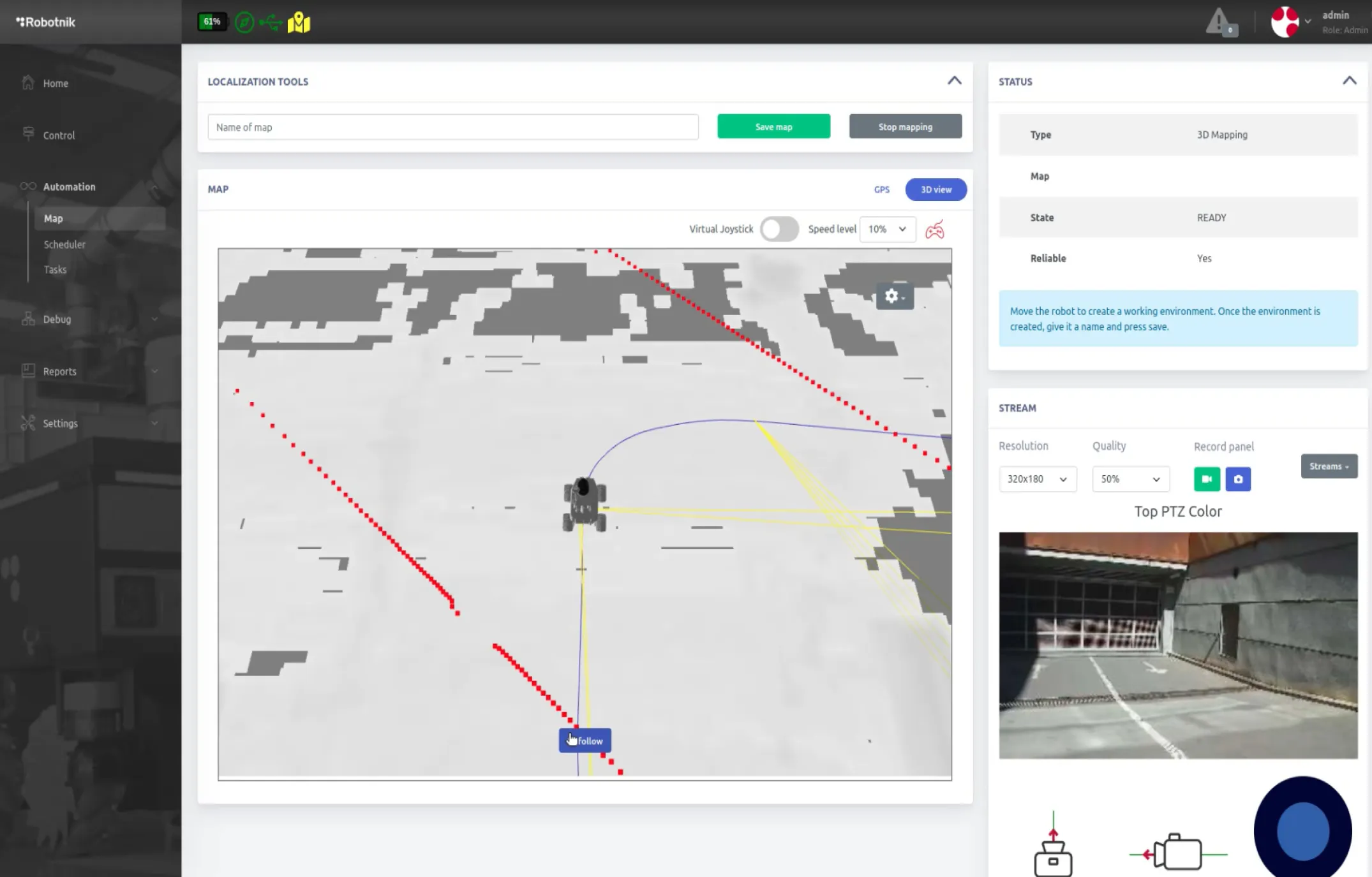

  • Localization system: SLAM
  • Temperature range: -10º C to + 45º C
  • Max. slope: 80%

COMMUNICATION

  • WiFi 802.11 b/g/n/ac
  • Bluetooth 4.0

CONNECTIVITY

  • USB x1
  • Ethernet x1
  • DC Power output

INCLUDED

  • CPU Intel i7
  • 5G Router
  • GPS
  • IMU
  • RGBD Camera
  • LIDAR 3D
  • Beacon 360 LED Lighting
  • Microphone IP65
  • Speakers IP65
  • Bi-spectral Pan-Tilt-Zoom
  • Inspection Packages
  • Battery 48VDC@15Ah
  • Charging station

OPTIONAL

  • Mecanum wheels

Security & surveillance

Human detection

Data collection

Fire detection
